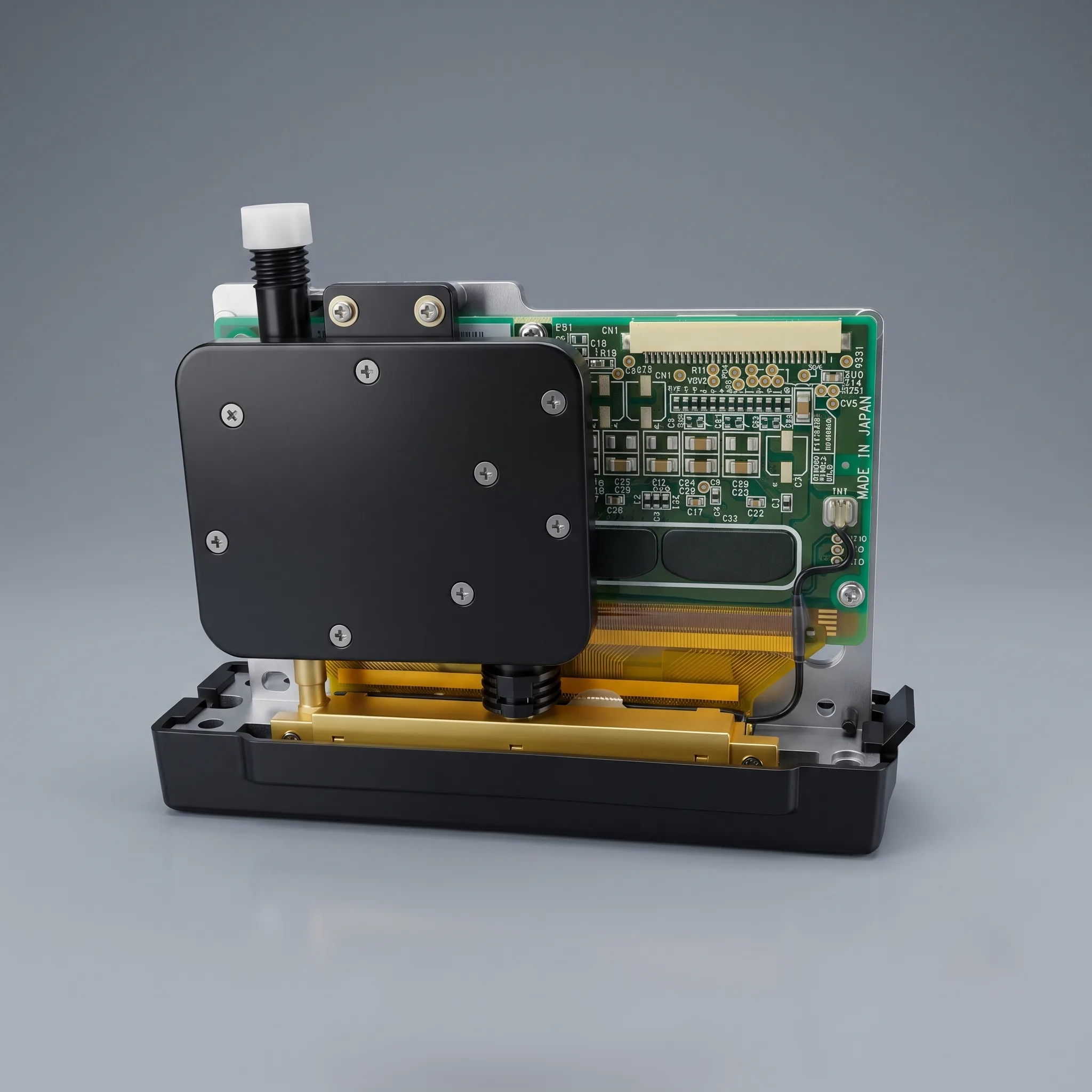

Seiko SPT510-50PL Printhead | Industrial Piezo Printhead for Solvent, UV & Oil-Based Inks
Seiko SPT510-50PL Printhead | Industrial Piezo Printhead for Solvent, UV & Oil-Based Inks thumbnail 1 Seiko SPT510-50PL Printhead | Industrial Piezo Printhead for Solvent, UV & Oil-Based Inks thumbnail 2
Buy product from Ohmanykart

Seiko SPT510-50PL Printhead | Industrial Piezo Printhead for Solvent, UV & Oil-Based Inks

Model: Seiko

In Stock
Discover the Seiko SPT510-50PL at KingJet India. 510 nozzles, 50 pL drops, piezo DOD tech, integrated ink management. Solvent, UV & oil-based inks for reliable printing.
Specifications
brand KingJet
model Seiko SPT510-50PL Printhead | Industrial Piezo Printhead for Solvent, UV & Oil-Based Inks
key features Seiko SPT510-50PL, Seiko SPT510 Printhead, Seiko 510 Printhead, Industrial Inkjet Printhead, Piezo Printhead, Solvent Printer Printhead, UV Printer Head
Key Features

What You Get with the SPT510-50PL

Core specifications and built-in systems — use this when matching against other SPT510 variants (35PL, 12PL, etc.) or verifying ink and RIP compatibility on your printer.

  • Print engine: Drop-on-Demand piezo electric; 510 active nozzles; 180 dpi native resolution; 71.8 mm print width
  • Drop size: Fixed 50 picolitre (50 pL) — large-droplet variant optimised for coverage and outdoor colour density
  • Throughput: Printing speed up to 4.2 m/s; firing frequency 6–8 kHz (actual speed depends on RIP, pass count, and printer setup)
  • Ink types: Solvent, UV, and oil-based inks — confirm your specific ink formulation with KingJet before installation
  • Ink damper: Internal damper assembly stabilises ink pressure during jetting and startup
  • Ink filter: Built-in filter protects nozzles from particulates in the ink supply line
  • Voltage control: Real-time voltage control system maintains consistent drive signals for stable droplet formation
  • Tickling Function: Periodic nozzle activation to prevent ink drying and clogging during idle periods
  • Series: Seiko SPT510 family — ensure your machine uses the 50PL drop-size variant, not a smaller-drop SPT510 model
  • Supply: Genuine Seiko SPT510-50PL printhead from KingJet India — not refurbished or re-coded units
Applications

Where the SPT510-50PL Excels

The 50 pL SPT510 is positioned for large-format work where ink laydown and production speed matter more than photo-fine detail. These are the jobs print shops most commonly run on this head.

Outdoor Billboards & Flex Banners

Large-format solvent printing on flex, mesh, and PVC for hoardings, building wraps, and event banners. The 50 pL drop size delivers the bold colour and fast fill rates these jobs demand.

Vehicle Wraps & Fleet Graphics

Vinyl printing for car wraps, fleet branding, and transit advertising. Strong ink density from 50 pL droplets helps solid brand colours read clearly on curved vehicle surfaces.

Backlit & Exhibition Graphics

Lightbox displays, exhibition backdrops, and promotional stands where even ink coverage across large panels matters. Also used on UV and oil-based systems for display graphics and industrial output.

Replacement on KingJet & OEM Machines

Direct replacement for SPT510-50PL heads on Infiniti Challenger FY, CrystalJet CJ, Icontek TW, Phaeton UD, Xenons, and similar platforms. Share your printer model with KingJet India to confirm the correct SPT510 drop-size variant before ordering.

  • SPT510-50PL
  • Large Format Printing
  • Outdoor Advertising
  • Flex Banner Printing
  • Vinyl Printing
  • Vehicle Wrap Printing
  • Signage Printing
  • Exhibition Graphics
  • Solvent Printhead
  • UV Printhead
  • 50 pL Drop Size
  • KingJet India
Specifications

Technical Specifications

Reference data for procurement and fitment checks. When replacing an existing head, confirm the drop size marking on your current unit reads 50PL before ordering this variant.

510 Nozzles

Standard SPT510 nozzle count across a 71.8 mm swath — common on multi-head solvent wide-format carriages.

50 pL

Large fixed droplet for bold outdoor graphics. Choose this over smaller SPT510 variants when coverage speed is the priority.

4.2 m/s

Maximum rated print speed. Real-world throughput also depends on resolution, number of passes, and carriage mechanics.

3 Ink Types

Solvent, UV, and oil-based formulations — your printer’s ink system and curing setup determine which applies.

Specification Details
Product NameSeiko SPT510-50PL Printhead
Print TechnologyDrop-on-Demand Piezo Electric
Active Nozzles510
Native Resolution180 dpi
Print Width71.8 mm
Drop Volume50 pL
Printing SpeedUp to 4.2 m/s
Firing Frequency6–8 kHz
Ink CompatibilitySolvent, UV, Oil-Based
Built-in FeaturesInk Damper, Ink Filter, Voltage Control, Tickling Function
BrandSeiko (supplied by KingJet India)

Printers That Use the SPT510-50PL

These industrial printers commonly use Seiko SPT510 series printheads. Drop size, board version, and ink system vary by model — confirm your machine uses the 50PL variant before purchase.

Printer Model Machine Type
Acetek TC-3208GDSolvent wide-format
CrystalJet CJ-4000Solvent printer
CrystalJet CJ-6000Solvent wide-format
Icontek TW-3308MSIndustrial inkjet
Infiniti Challenger FY-3208NSolvent wide-format
Infiniti Challenger FY-3208QSolvent wide-format
Infiniti Challenger FY-3278NSolvent wide-format
Infiniti Challenger FY-3278QSolvent wide-format
Phaeton UD-3278KSolvent wide-format
Phaeton UD-3278QSolvent wide-format
SID Xpress 320Wide-format inkjet
Xenons X5310Solvent printer
Xutu XTS 1000Industrial inkjet
Xutu XTS 2000Industrial inkjet
