Dual Head Cutting Plotter | D24 Duable Head Box Making Machine for Crease and Cut
Dual Head Cutting Plotter | D24 Duable Head Box Making Machine for Crease and Cut thumbnail 1 Dual Head Cutting Plotter | D24 Duable Head Box Making Machine for Crease and Cut thumbnail 2 Dual Head Cutting Plotter | D24 Duable Head Box Making Machine for Crease and Cut thumbnail 3 Dual Head Cutting Plotter | D24 Duable Head Box Making Machine for Crease and Cut thumbnail 4
Buy product from Ohmanykart

Dual Head Cutting Plotter | D24 Duable Head Box Making Machine for Crease and Cut

Model: RADIUM OR RETRO CUTTING PLOTTERS

In Stock
KINGJET D24 dual head cutting plotter with 720 mm media width, crease and cut in one pass, 2000g force and camera contour cutting. For box making, rigid boxes, packaging samples, vinyl, labels and commercial print finishing.

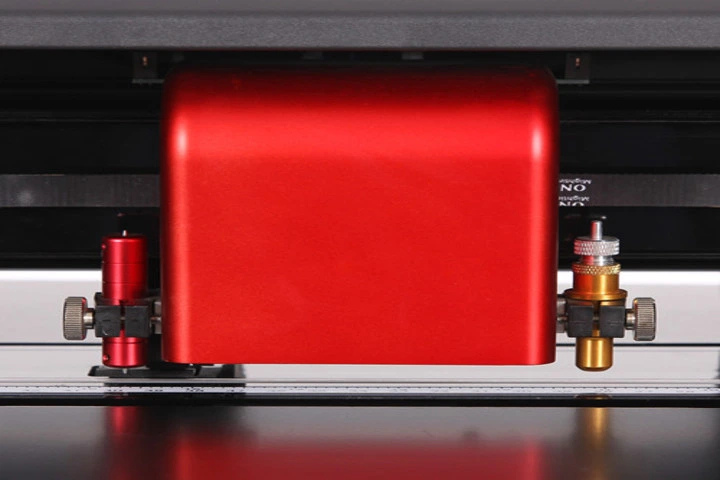

  • Dual Head Cut & Crease – Two independent dual head tool stations crease and cut in one workflow — built for fast box making and packaging sample work.
  • 720 mm Wide-Format Cutting – 560 mm max cutting width for cartons, board sheets, vinyl rolls, and digitally printed media.
  • 2000g Force & 600 mm/s Speed – Up to 2000g cutting force with ±0.01 mm precision — enough power for cardstock, board, and materials used in rigid boxes.
  • Heavy-Duty Box Making Machine – Industrial metal body with half-cut, full-cut, and crease lines for folding cartons, mailers, and prototype dielines.
Catalogue 1 Watch Video
Specifications
brand KingJet
model Dual Head Cutting Plotter | D24 Duable Head Box Making Machine for Crease and Cut
key features KINGJET D24, dual head cutting plotter, box making, box making machine, rigid boxes, crease and cut, plotter printer, dual head plotter, vinyl cutting plotter, KINGJET India
Product Kingjet D24 Kingjet D48
Max Media Width720 mm1350 mm
Max Cutting Width560 mm1190 mm
Max Contour Cutting Width450 mm1080 mm
Packing Size1000 × 360 × 388 mm1620 × 360 × 388 mm
Packing Gross Weight18.5 kg39.5 kg
Max Force2000 g2000 g
Number of Heads22
Floor StandOptionYes
Auto Contour CutCameraCamera
CorelDRAW DirectlyYesYes
Power Supply, V/Hz220/50220/50
Laser Engrave OptionNoNo
Scratch EngraveYesYes
MotorStepperStepper
Processor Memory128 MB128 MB
Cutting Precision±0.01 mm±0.01 mm
Repeat Precision0.082 mm0.082 mm
Max Moving Speed700 mm/s700 mm/s
Max Cutting Speed600 mm/s600 mm/s
Connector InterfaceUSB flash / Wi-Fi (option) / USB cableUSB flash / Wi-Fi (option) / USB cable
Power<100 W<100 W
Working Environment+5°C – +35°C+5°C – +35°C
Db Values7575
