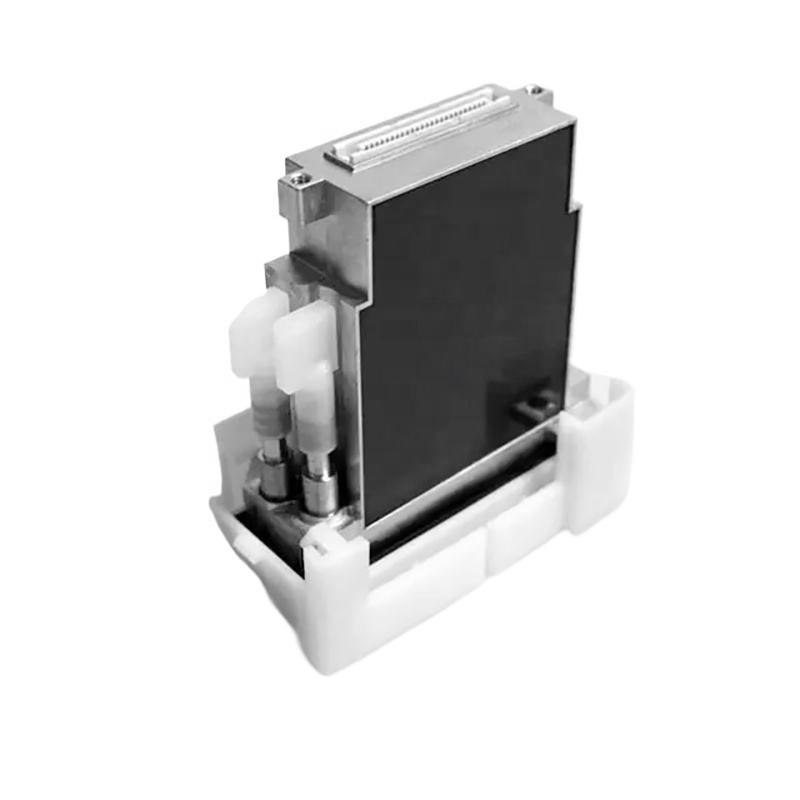

Konica KM512LN 42PL Printhead | Solvent UV Oil-Based Industrial Printhead

Model: Konica

In Stock

Konica KM512LN 42PL printhead at KingJet India. 512 nozzles, 360 dpi, 42 pL binary mode. Solvent, UV & oil-based. Agfa, JHF, DYSS, Myjet compatible.

Specifications

brand	KingJet
model	Konica KM512LN 42PL Printhead \| Solvent UV Oil-Based Industrial Printhead
key features	Konica KM512LN, KM512 42PL, Konica Minolta Printhead, Konica 512 Printhead, Solvent Printer Printhead, UV Printhead, Oil-Based Ink Printhead, Industrial Inkjet Head

brand

KingJet

model

Konica KM512LN 42PL Printhead | Solvent UV Oil-Based Industrial Printhead

key features

Konica KM512LN, KM512 42PL, Konica Minolta Printhead, Konica 512 Printhead, Solvent Printer Printhead, UV Printhead, Oil-Based Ink Printhead, Industrial Inkjet Head

Key Features

What You Get with the KM512LN

Core specifications — use when confirming 42PL L-type fitment against KM512 MN (14 pL) or KM512 SN (4 pL) greyscale variants.

Model: Konica Minolta KM512 LN / KM512 LNX — 42 pL L-type (binary mode)
Technology: Piezo drop-on-demand, shear mode, shared wall 3-cycle
Nozzles: 512 total (256 per line); double-row staggered structure
Resolution: 180 dpi × 2 lines = 360 dpi native
Droplet size: 42 picolitres (calibrated)
Print width: 36.1 mm per head module
Nozzle spacing: 70.5 μm (141 μm × 2 lines)
Firing frequency: 7.6 kHz
Ink types: Oil-based, solvent, and UV inks
Heater: Not integrated (LN variant); KM512 H-type available for heated UV
Construction: All-steel, fully enclosed, waterproof housing
Supply: Genuine Konica KM512LN from KingJet India

Applications

Where the KM512LN Excels

The 42 pL KM512 L-type head targets super-wide format production where binary-mode speed and bold ink laydown matter more than fine greyscale detail — the same segment served by Agfa, JHF, DYSS, and Myjet industrial platforms.

Solvent Wide-Format Printing

Aggressive solvent inks on flex, vinyl, and mesh for outdoor hoardings, banners, and building wraps. The 42 pL drop size fills large colour areas fast on JHF Vista and DYSS Apollo production lines.

UV Flatbed & Roll Systems

UV-cured printing on Agfa Anapurna, Allwin, and Dilli Neo Titan platforms. KM512 heads stack in multi-head carriages for page-width UV output on rigid and roll substrates.

Oil-Based Industrial Printing

Oil-based ink compatibility extends the KM512LN to specialised industrial print systems where solvent and UV formulations are not used — confirm your ink type with KingJet before ordering.

KingJet & OEM Replacement

Direct replacement KM512LN 42PL head for compatible Agfa, JHF, DYSS, Myjet, Taimes, and Skynet machines. Share your printer model and current head marking (LN / LNX) with KingJet India to confirm fitment.

KM512LN
KM512 42PL
Konica 512
Solvent Printhead
UV Printhead
JHF Vista
DYSS Apollo
Agfa Anapurna
360 dpi
Wide Format
KingJet India

Specifications

Technical Specifications

Reference data for KM512LN fitment. Confirm your machine uses the 42 pL L-type binary head — not the 14 pL M-type or 4 pL S-type greyscale variants.

512 Nozzles

Double-row staggered layout — 256 nozzles per line for accurate industrial jetting.

42 pL

L-type binary droplet — bold coverage for outdoor and super-wide format graphics.

360 dpi

180 dpi × 2 lines native resolution across 36.1 mm print width.

3 Ink Types

Solvent, UV, and oil-based formulations on compatible printer systems.

Specification	Details
Product Model	Konica KM512LN 42PL Printhead
Also Known As	Konica Minolta KM512 LNX
Print Technology	Piezo Drop-On-Demand (Shared Wall 3 Cycle)
Operating Mode	Binary
Native Resolution	180 dpi × 2 lines = 360 dpi
Calibrated Droplet Size	42 picolitres
Total Nozzles	512 (256 nozzles per line)
Nozzle Spacing	70.5 μm (141 μm × 2 lines)
Print Width	36.1 mm
Firing Frequency	7.6 kHz
Ink Compatibility	Oil-Based, Solvent, UV Inks
Integrated Heater	Not integrated (LN variant)
Construction	All-steel, fully enclosed
Brand	Konica Minolta (supplied by KingJet India)

KM512 Series Drop-Size Variants

The KM512 family shares the same mount design — choose the variant that matches your machine configuration and print quality requirements.

Type	Drop Volume	Mode
KM512 LN (L-type) — this head	42 pL	Binary
KM512 MN (M-type)	14 pL	4-level greyscale
KM512 SN (S-type)	4 pL	4-level greyscale

Compatible Printer Models

KM512LN 42PL heads are used on these and similar super-wide format industrial printers. Confirm your exact model before ordering.

Brand	Printer Model
Aestrik	InWear S3304K5
Aestrik	InWear S3308K5
Agfa	Anapurna Mv
Agfa	Anapurna Mw
Allwin	C12
Allwin	C8
Dilli	Neo Titan UVT-1606W
DYSS	Apollo PTP18/3202-KC
DYSS	Apollo PTP18/3204-KC
DYSS	Apollo PTP18/3206-KC
DYSS	Apollo PTP1804-KL
DYSS	Apollo PTP1806-KL
DYSS	Apollo PTP1808-KL
DYSS	Apollo PTP3204-KL
DYSS	Apollo PTP3206-KL
DYSS	Apollo PTP3208-KL
DYSS	Apollo PZ 3208-KX
DYSS	Apollo PZ3204-KX
DYSS	Apollo PZ3206-KX
Icontek	3306
JHF	Vista 2506
JHF	Vista H8 3304F
JHF	Vista H8 3306F
JHF	Vista H8 3308F
JHF	Vista S5004F
JHF	Vista S5006FS
Myjet	LB320
Myjet	LE320
Myjet	WB320
Rodin	K4320-A
Rodin	K4320-B
Skynet	HS-Series
Skynet	PC-Series
Taimes	T5
Taimes	T7
