Auto Feeder Cutting Plotter | A3 Max 5 PRO-600 Dual Head Sticker & Label Cutting Machine
Auto Feeder Cutting Plotter | A3 Max 5 PRO-600 Dual Head Sticker & Label Cutting Machine thumbnail 1 Auto Feeder Cutting Plotter | A3 Max 5 PRO-600 Dual Head Sticker & Label Cutting Machine thumbnail 2 Auto Feeder Cutting Plotter | A3 Max 5 PRO-600 Dual Head Sticker & Label Cutting Machine thumbnail 3
Buy product from Ohmanykart

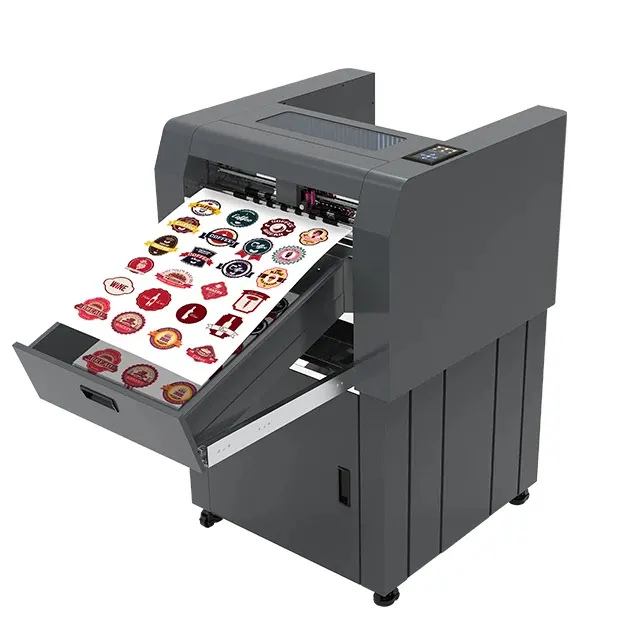

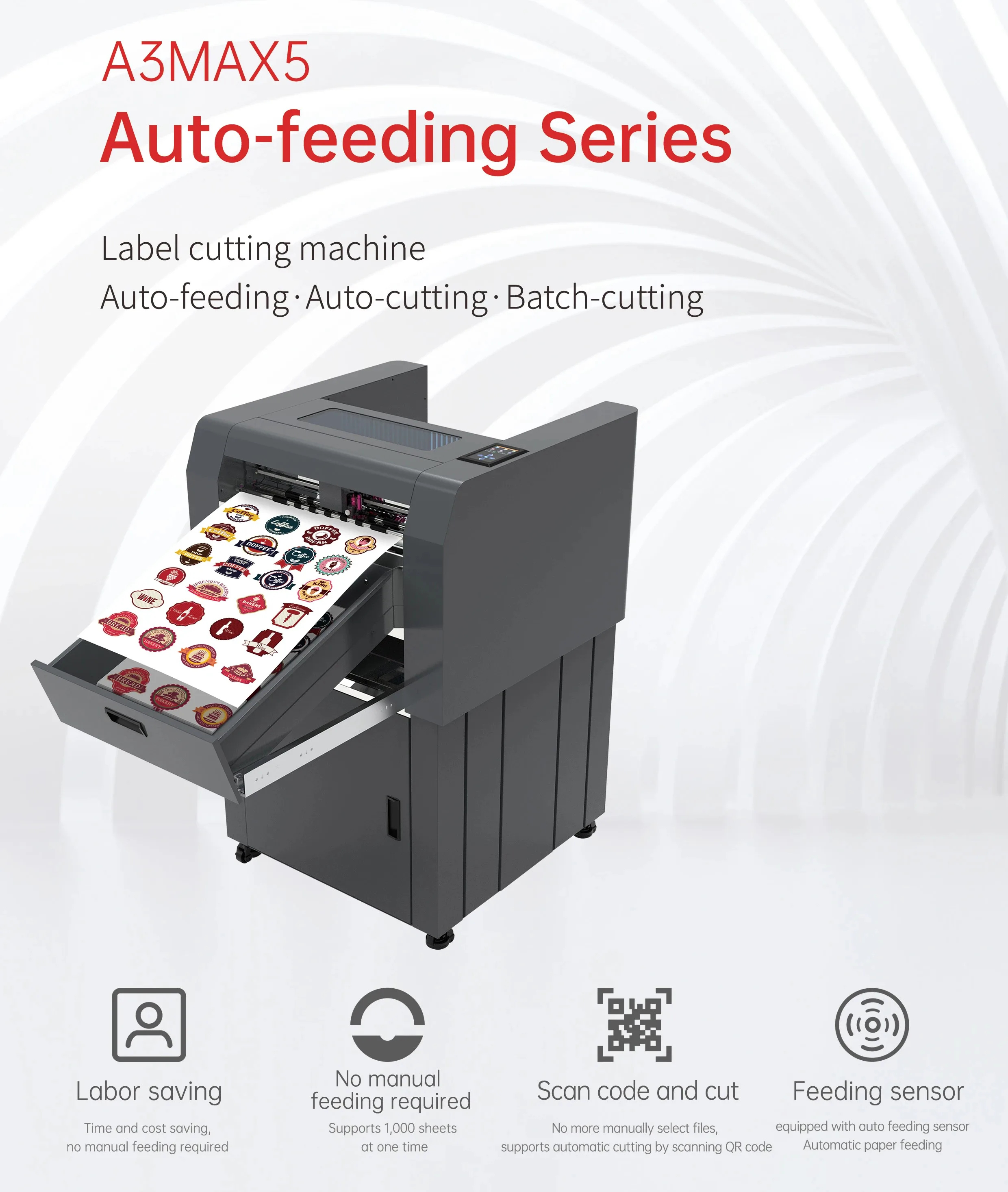

Auto Feeder Cutting Plotter | A3 Max 5 PRO-600 Dual Head Sticker & Label Cutting Machine

Model: AUTO FEEDER CUTTING PLOTTERS

In Stock
Buy the SKYCUT A3 Max 5 PRO-600 auto feeder cutting plotter with dual-head cutting, rotary creasing tool, 3000g servo motor, automatic sheet feeding, and camera contour cutting. Ideal for stickers, product labels, packaging labels, business cards, greeting cards, and commercial print finishing.
  • Intelligent Auto Feeder System – Up to 1000 sheets with automatic feeding — continuous runs on this auto feeder cutting plotter.
  • Dual Head & Rotary Creasing Tool – One head cuts, the rotary creasing tool scores fold lines in one workflow.
  • 3000g Servo Motor – Industrial 3000g cutting force for thicker vinyl, cardstock, and laminated sheets.
  • 1600 mm/s High-Speed Cutting – Up to 1600 mm/s cutting and movement with ±0.01 mm accuracy.
  • Camera Contour Cutting – Automatic registration mark detection for die-cut stickers and product labels.
  • HD Touchscreen & Connectivity – USB, Wi-Fi, and U-disk — CorelDRAW, Illustrator, and SignMaster ready.
Catalogue 1 Watch Video
Specifications
brand KingJet
model Auto Feeder Cutting Plotter | A3 Max 5 PRO-600 Dual Head Sticker & Label Cutting Machine
key features auto feeder, auto feeding, sheet cutting machine, label cutting machine, automatic sheet cutter, dual head cutting plotter, rotary creasing tool, sticker cutting machine, A3 Max 5 PRO-600
Product SKYCUT A3 MAX 5 Pro-600
Max Media Width 600 mm
Max Cutting Width 580 mm
Max Feeding Quantity Up to 1000 PCS
Cutting Precision 0.01 mm
Repeat Precision 0.08 mm
Max Moving Speed 1600 mm/s
Max Cutting Speed 1600 mm/s
Max Force 3000 g
Connector Interface U-disk / Wi-Fi / USB Cable
Power < 120 W
Working Environment +5°C – +35°C
Packing Size 870 × 867 × 645 mm
Packing Gross Weight Approx. 128 kg
Cabinet 870 × 810 × 710 mm
Cabinet Weight Approx. 83 kg
