Cutting Plotter D48 Dual Head | Creasing & Cutting

Model: RADIUM OR RETRO CUTTING PLOTTERS

In Stock
D48 Dual Head Cutting Plotter offers fast and precise vinyl, sticker and label cutting with dual head technology. Ideal for commercial production.
  • Simple plug-and-play machine with an easy installation procedure.

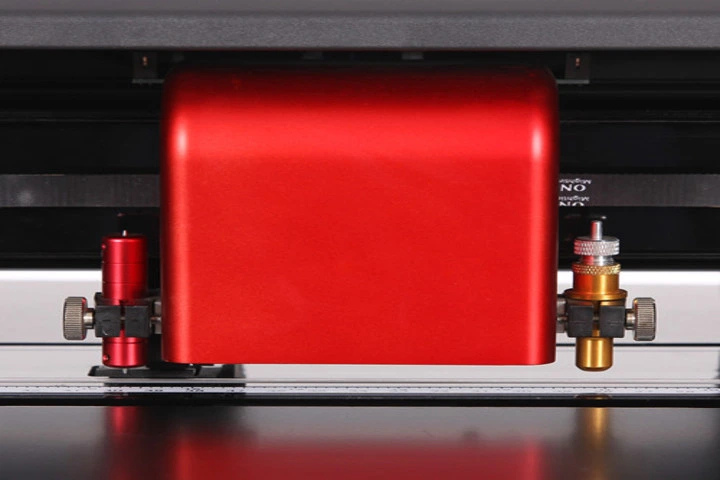

  • Dual independent heads for various and different functions.
  • 2000 g cutting force, capable of cutting and creasing thick materials easily.
  • “Heavy duty” plotter for multi-purpose use (half-cut, full-cut, box making, cutting, etc.) with freely adjustable distance between each copy.

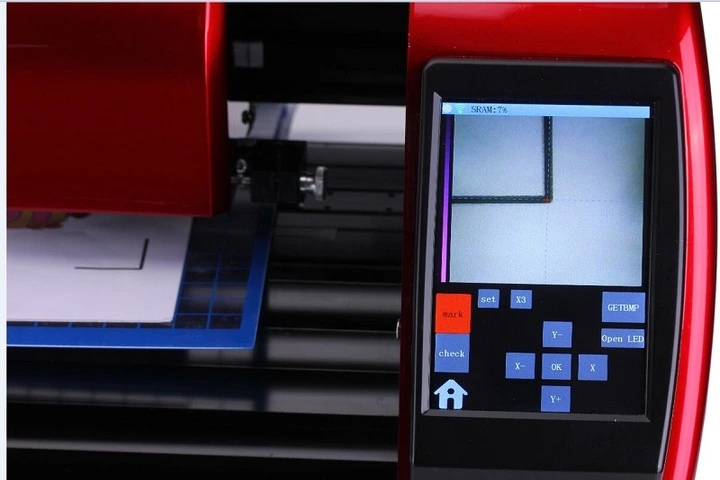

  • Large touchscreen with intuitive controls and built-in sound feedback for easy operation.
Catalogue 1 Watch Video
Specifications
brand KingJet
model Cutting Plotter D48 Dual Head | Creasing & Cutting
key features best cutting plotter machine, creasing and cutting, creasing and cutting plotter, double head cutting, double head cutting machine dual head cutting plotter
Product Kingjet D24 Kingjet D48
Max Media Width720 mm1350 mm
Max Cutting Width560 mm1190 mm
Max Contour Cutting Width450 mm1080 mm
Packing Size1000 × 360 × 388 mm1620 × 360 × 388 mm
Packing Gross Weight18.5 kg39.5 kg
Max Force2000 g2000 g
Number of Heads22
Floor StandOptionYes
Auto Contour CutCameraCamera
CorelDRAW DirectlyYesYes
Power Supply (V/Hz)220 / 50220 / 50
Laser Engrave OptionNoNo
Scratch EngraveYesYes
MotorStepperStepper
Processor Memory128 MB128 MB
Cutting Precision±0.01 mm±0.01 mm
Repeat Precision0.082 mm0.082 mm
Max Moving Speed700 mm/s700 mm/s
Max Cutting Speed600 mm/s600 mm/s
Connector InterfaceUSB flash / Wi-Fi (option) / USB cableUSB flash / Wi-Fi (option) / USB cable
Power<100 W<100 W
Working Environment+5°C – +35°C+5°C – +35°C
Db Values7575
