Model: Epson
| brand | KingJet |
|---|---|

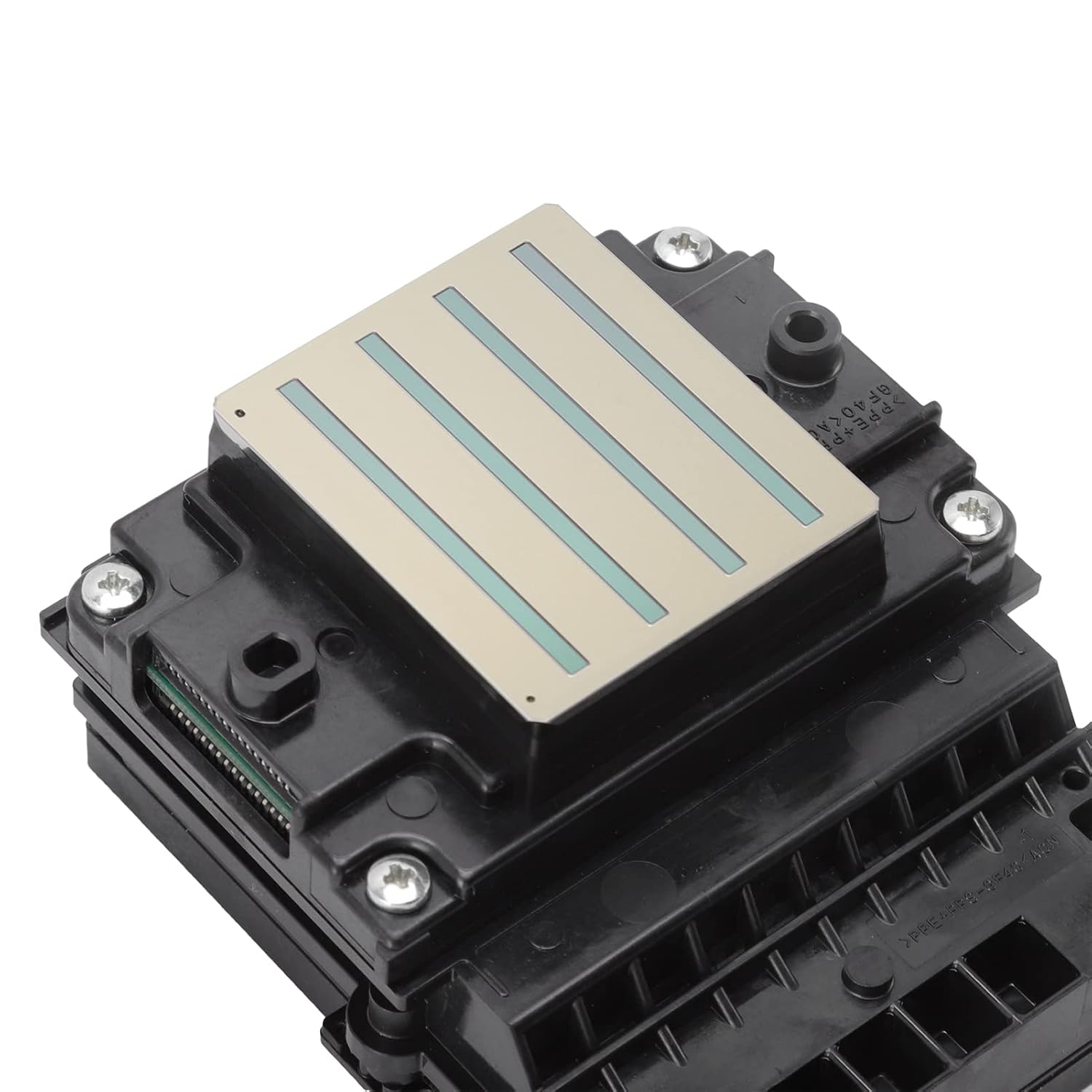

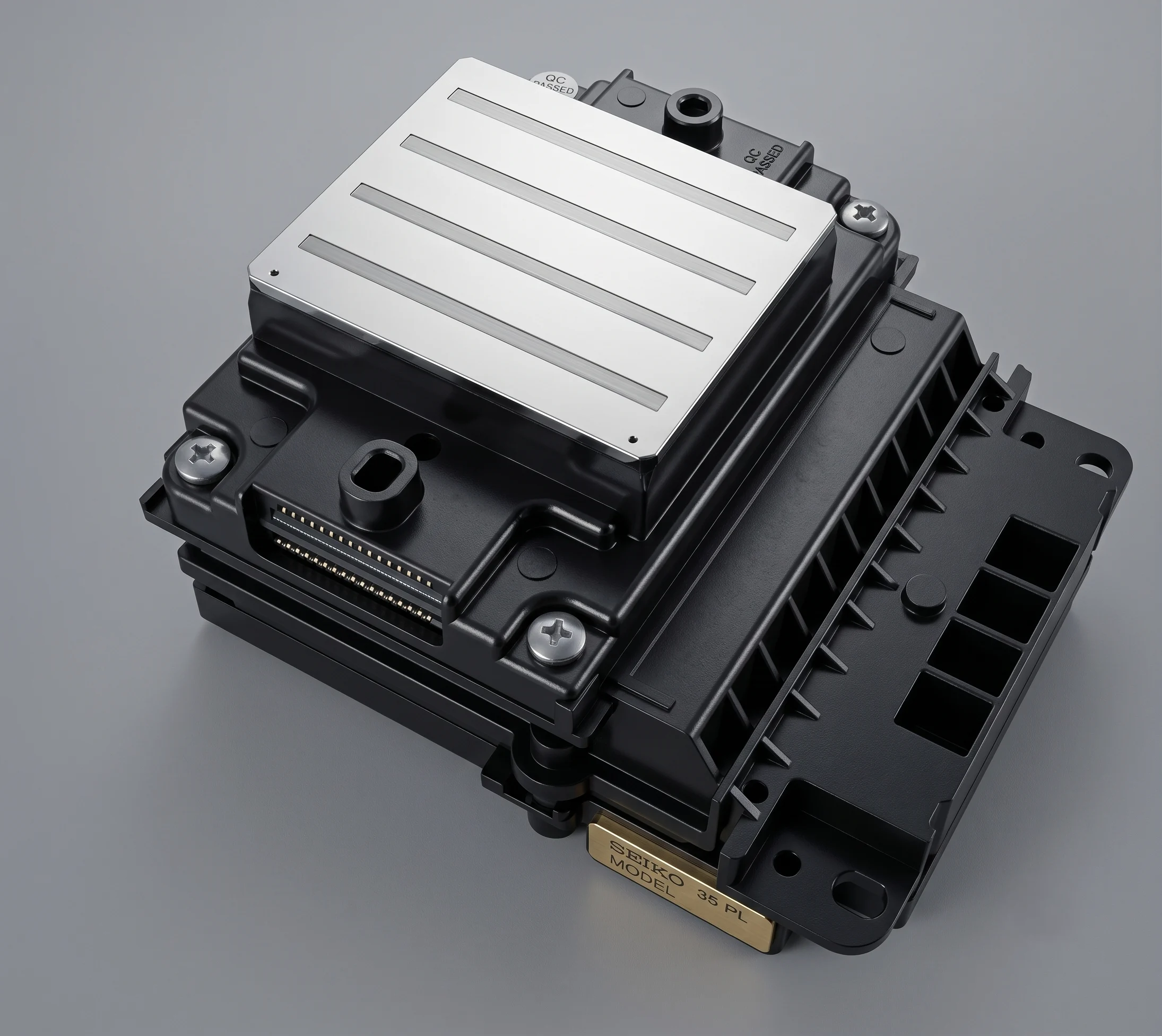

| model | Epson 5113 Printhead | High-Speed Industrial Printhead for Sublimation & Water-Based Printing |
| key features | Epson 5113, Epson 5113 Printhead, Industrial Epson Printhead, Sublimation Printer Printhead, Water-Based Ink Printhead, Digital Textile Printing, Commercial Printing Equipment |
Core specifications for procurement and RIP setup — use this when comparing the 5113 against the Epson DX5 or verifying ink compatibility on your machine.
The 5113 is an indoor printhead — optimised for water-based and sublimation workflows. It is not the right choice for eco-solvent outdoor signage; for that, consider the Epson DX5 instead.
The primary use case — sublimation ink on polyester fabrics, sportswear, soft signage, and transfer paper. High nozzle density and variable droplets deliver vibrant, wash-fast colour on textile rolls at production speed.
Poster printing, indoor banners, and point-of-sale graphics on water-based systems. Sharp 3,200-nozzle output suits retail displays, mall signage, and commercial graphics viewed at close range.
High-resolution photo printing and exhibition backdrops where smooth gradients and fine detail matter. Multi-droplet control from 3.8 pL produces the image clarity expected on premium indoor graphic work.
Replacement Epson 5113 printhead for industrial inkjet, sublimation, and textile printing machines configured for water-based inks. Share your printer model with KingJet India to confirm 5113 compatibility before ordering.
Reference data for fitment and ink system checks. Confirm your printer is configured for water-based or sublimation inks before installing an Epson 5113 head.
8 rows × 400 nozzles — over twice the DX5 count for finer detail and smoother gradients on indoor graphics.
Maximum jetting frequency supports fast industrial pass speeds on sublimation and textile production lines.
Variable multi-droplet sizing for balanced detail and smooth tonal transitions on photos and fabric prints.
Typical production rate per head — faster than DX5 for high-volume indoor commercial printing.
| Specification | Details |
|---|---|
| Product Model | Epson 5113 Printhead |
| Print Technology | Piezo Inkjet |
| Number of Nozzles | 3,200 (8 × 400) |
| Effective Print Width | 33.8 mm |
| Print Resolution | 300 npi (Single Row), 600 npi (Dual Row) |
| Nozzle Pitch | 1/300 inch |
| Supported Ink | Water-Based Ink, Sublimation Ink |
| Ink Colors | 4 Colors |
| Ink Drop Size | 3.8–6–12 pL (Variable Droplet) |
| Jetting Frequency | Up to 43.2 kHz |
| Ink Viscosity | 3–4 mPa·s |
| Dimensions | 69.1 × 59.4 × 35.6 mm |
| Weight | Approximately 82 g |
| Brand | Epson (supplied by KingJet India) |
Choosing between indoor high-resolution production and outdoor eco-solvent flexibility? This comparison helps clarify which Epson head suits your workflow.
| Feature | Epson 5113 | Epson DX5 |
|---|---|---|
| Nozzles | 3,200 | 1,440 |
| Ink Compatibility | Water-Based, Sublimation | Water-Based, Eco Solvent, Sublimation |
| Indoor Printing | Excellent | Excellent |
| Outdoor Printing | Not Recommended | Suitable |
| Printing Speed | Up to 20–30 m²/h | Up to 18 m²/h |
| Print Quality | Very High | High |
The Epson 5113 is commonly installed on industrial platforms configured for water-based or sublimation inks. Compatibility depends on the machine manufacturer and printhead carriage setup.
| Printer Category | Typical Application |
|---|---|
| Industrial inkjet printers | High-volume indoor commercial printing |
| Sublimation printers | Polyester fabric, sportswear, transfer paper |
| Textile printing machines | Roll-to-roll fabric and soft signage production |
| Water-based printing systems | Posters, indoor graphics, photo printing |
| Commercial digital printing equipment | Exhibition graphics, retail displays, PSP work |
