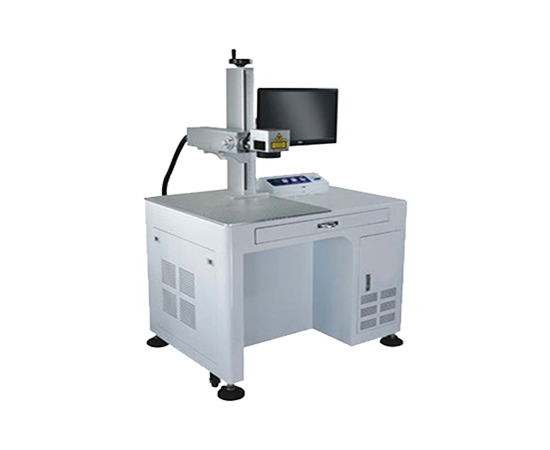

SKYCUT Laser Marking Machine

Laser marking is the process of permanently marking a surface using a focused beam of light. It can be performed using different types of lasers, including fiber lasers, CO2 lasers, pulsed lasers, and continuous lasers.



Features

1. All Type Metal Marking,Mobile Charger Marking,Etc And Many More.
2. Laser Type is Fiber.
3. Electric Power Source.
4. Automatic Grade, Capacity 1-20kg, Frequency 50Hz.
5. Voltage Power in between 220-380V.



Inquire Now Next Product








Specifications

Product SKYCUT Laser Marking
Laser Power 20W
Laser Type Fiber Laser
Wavelength 1064 nm
Processing Area 220*220 mm
Frequency Range 20-200 khz
Beam Quality <1.6 M2
Laser Source Lifetime ≤100000 h
Marking Speed ≤8000 mm/s
Marking Depth ≤2 mm
Repitition Pricision ±0.01 mm
Min. Line Width 0.01 mm
Min. Character <0.2 mm
Cooling Mode Air Cooling
Lifting Height 100*500 mm ( 700 mm )
Graphic Format Supported PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Power Source AC 110/220 ± 10%, 50/60Hz
Gross Power <500 W
