Product Description

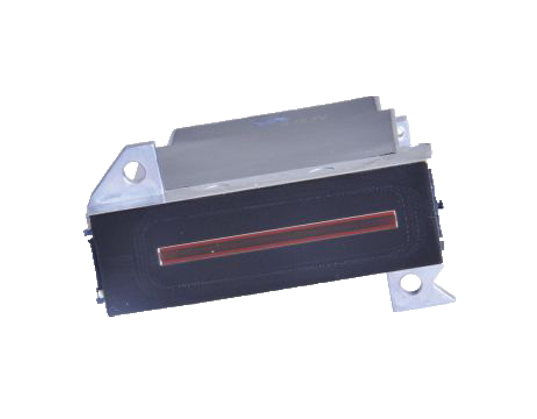

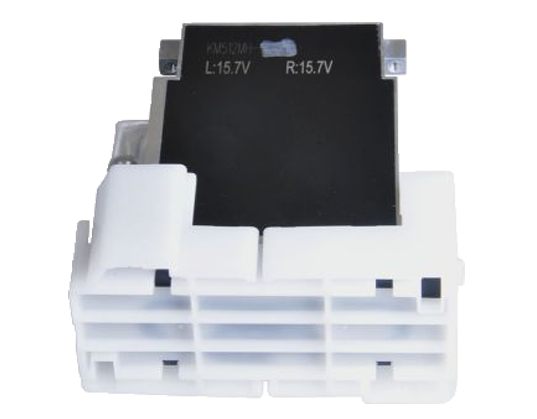

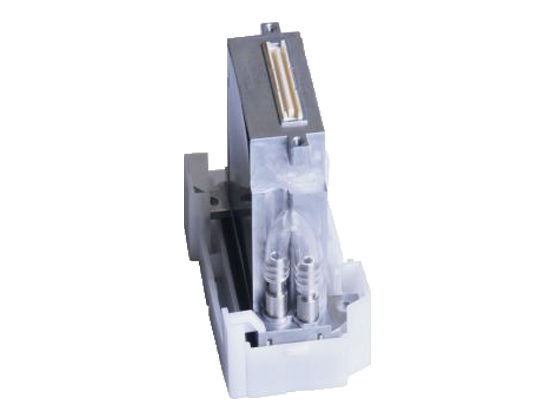

The Konica KM512MH printhead is a robust, shear mode, piezo on-demand Print Head that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads.The Konica KM512MH printhead has 512 nozzles with a droplet size of 14pl and a nozzle resolution of 360 dpi. It has an integrated heater, which makes it ideal for oil based and UV inks, but it works with Solvent Ink as well. The heater can be heated up to 55°C. This print head is also known as the Konica Minolta KM512 MHX. This is Konica original print head and it includes the Head ID and the necessary waveform information.
To be used with:
Anhui Liyu Victor KJ2512 / Victor KJ2520 / Victor KJ3020, Ampla Digital Targa Elite
CET Color FK512Z
Flora F1 250UV / F1 320UV / F1 180UV / PP 1816UV / PP 2512UV / PP 3218UV Flora F1250UV,
GCC StellarJet K100UV / StellarJet K72UV / StellarJet K72LSUV / StellarJet 183uv / StellarJet 183uvk,
Gerber Solara Ion Z / CAT UV
Grapo Manta / Manta Slim / Manta White / Octopus II
IP&I Cube 260UV / Cube 160 / Cube 1606F / Cube 1606S / Cube 1606uv, Leopard UVB,
KingColor UV1224C / UV2030C
Neo Titan UVT-1606W(S) / Neo Titan UVT-2506W(S) / Neo Titan UV-1606VS / Neo Titan UV-1606W / Neo Titan UV-2506W / Neo Titan UVT-1680 /
Titan UV-1604D
Rodin K7250UV, Docan 2512 UV / 2518 UV / 2518-16 UV / 3020 UV
SKYJET UV FlatMaser 2512 / SKYJET UV FlatMaser 2518 / SKYJET UV FlatMaser 3020 / SKYJET UV FlatMaser 3022 / SKYJET UV FlatMaser-R
Sun Innovations Neo UV-LED Evolution 1.6 / Neo UV-LED Evolution 2.5 / Neo UV-LED Evolution Compact / Neo UV-LED GlassTech / Neo UV-LED
Flatbed / Universal UV-LED 1.6 / Universal UV-LED 2.5
Shear mode, Piezo On-Demand Print Head
Piezo on-demand inkjet ejects ink drops utilizing deformation of small ink chambers composed of piezoelectric material, by applying electric field in accordance with signals. The principle of shear mode piezo actuation with shared wall structure allows lower power consumption as well as a high-density nozzle array.
512 Nozzle with 360 dpi resolution
High resolution, 360 nozzle per inch spacing has enabled arranging 512 Nozzle on a comactly designed print head. The KM512 series consists of type L, M and S, corresponding to unit drop volume capabilities of 42pl, 14pl and 4pl respectively. The type M and S can be driven in 4 level grey-scale mode for reproducing high quality images with smoother tones.
Compatible with Solvent, UV, Oil.
Due to its specially designed internal structure, the KM512 series boasts a wide range of ink compatibility, including aggressive solvent inks typically used for super-wide format printers. Inks which have high viscosity at room temperature, such as UV ink, can be heated up to 55 degrees Celsius with the H type's internal heater.

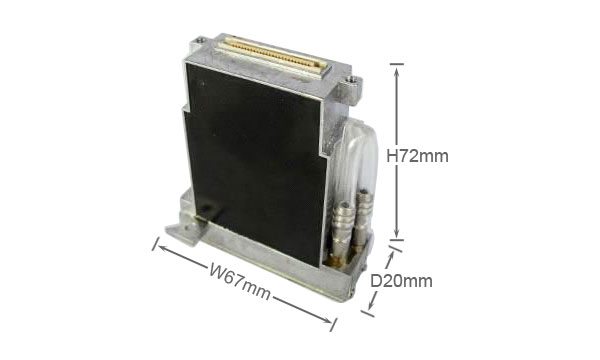

Enabling Comapct Design of Head MountSystem
This series is specially designed to have a "wing" structure so that users can precisely align the print heads without difficulty. This feature allows easy combination of page-width printhead units for the purpose of single-pass high-speed printing. The same external design allows interchangability of different type heads on the same mount system.
