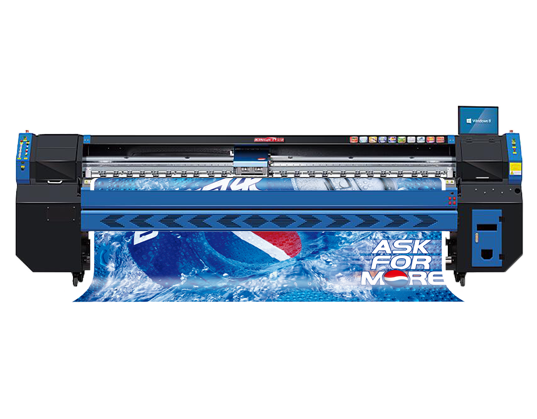

KingJet Large Format Printing Machine





KingJet Large Format Printing Machine

Newest Konica 512i solvent printhead, more stable with new design machine flame. Inquire Now

Next Product


1.Excellent Machine Framework 2.Multiple 3 Phases Constant Heating System 3.Imported Panasonic AC servo motor 4.Strong Aluminum Beam and HIWIN Rail 5.Feeding Up Gear Protective Cover 6.Infrared heating system and drying fan

Detail Dislay


Alumunium Girder & Platform

High precision & durable printing.


Elevation Type Capping Station

New design capping system, more durable.


Mute guide rails

high pricison & smooth operation to ensure perfect quality output.


Infrared & Fan Drying System

High efficency drying system,printing continuously.


Feeding & Take-up System

Constant tension,ensure accurate & smooth operation.

Application


Outdoor Flex Banner

Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.


Vehicle Wraps

Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.


Outdoor Posters and Backlit Displays

Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.


Outdoor Mesh

With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.



Specifications

Model SPECIFICATION OF KingJet KJ-3208G SOLVENT PRINTER
Max Print Width 3200mm (10.5ft)
Printing resolution 480DPI (Physical)
Product Model KM512I-30PL-4H                                                                                              KM512I-30PL-8H
Output(sqm/h) Print Mode                                     output speed(sqm/h)                                  Print Mode                         Output Speed(sqm/h)
480X360dpi 2pass                            120                                                         480X360dpi 2pass                         240
480X540dpi 3pass                            90                                                           480X540dpi 3pass                         180
480X720dpi 4pass                            60                                                           480X720dpi 4pass                         120
Auto Media Feeding System Equipped (Max. Media Weight 120kg )
RIP Software PhotoPRINT 10.5 or Maintop V5.30
Media Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Printhead Height 2 to 4 mm Above Media Adjustable
Cleaning System Auto Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Input Power AC 220V,50HZ,4500W
Machine Dimension L4,850 x W1010 x H1,340 mm; Net Weight: 680Kgs (1,499lbs)
Package Dimension L5230 x W1040 x H1480mm; Gross Weight: 900Kgs (1,984lbs); Two units in one 20 feet container
