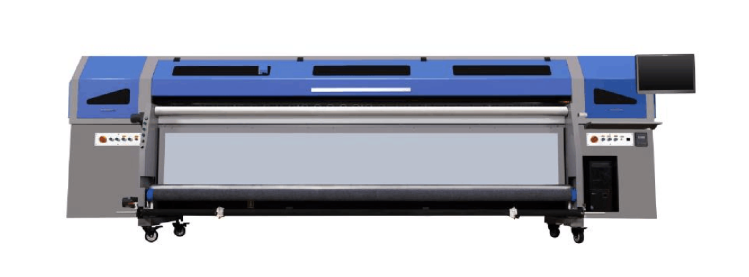

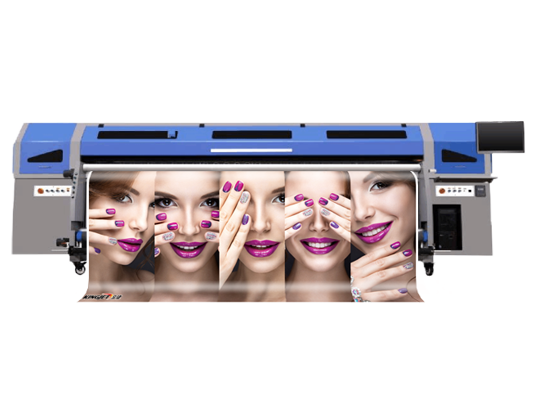

KingJet KJ-320 UV LED Printer





KingJet KJ-320 UV LED Printer

Specially designed left and right steel side boards for KINGJET 320UV, thickness 8mm, weight 27kgs, bending resist rate is up to 235MPa. It enables machine body bear for maximum 2 tons weight, so as to effectively resist vibration when the carriage is moving fastly, make sure each ink dot drops accurately.



Inquire Now Next Product


The advantage of excellent machine frame work

Specially designed left and right steel side boards for KINGJET 320UV, thickness 8mm, weight 27kgs, bending resist rate is up to 235MPa. It enables machine body bear for maximum 2 tons weight, so as to effectively resist vibration when the carriage is moving fastly, make sure each ink dot drops accurately.

No.1: Ricoh printhead GEN5.This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to four colours and has a total of 1280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers.

Specially designed left and right steel side boards for KINGJET 320UV, thickness 8mm, weight 27kgs, bending resist rate is up to 235MPa. It enables machine body bear for maximum 2 tons weight, so as to effectively resist vibration when the carriage is moving fastly, make sure each ink dot drops accurately.

No.1: Ricoh printhead GEN5.This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to four colours and has a total of 1280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers.

Dimensions: 89 x 25 x 69 mm (excluding cables) Head materials: SST, Nickel alloy and Epoxy Adhesive Nozzle plate surface: Coated SSTNumber of nozzles: 4 x 320 nozzles Nozzle spacing: 0.1693 mm Nozzle density: up to 600 npiPiezo type: D33 Stacked PZT Temperature control: Integrated Heater and Thermistor Operator temperature range: Up to 80° CNative drop volume: 7 pl Drop volume range: 7 - 35 pl Drop velocity: 7 m/sJetting frequency: Up to 60 kHZ Ink compatibility: UV InksLife: 100 billion actuations per nozzle



Uniquer Technology


Control Panel

Simple And Convenient,with Led Screen.
Easily Switch to different Interfaces.
Easily Turn or Off.


Small Cariage Form

Full Alumunium carriage frame ensure accurate Printing.
Automatic Adjust carriage height for different materials.
Proffesional positive UV damper ensure stable ink supply.
Anti-collision sensor.


Cylinder Clampe

Printing Options, Adjustable Spacing.
Can Printing Bottle,mug,Glass Bottlesand Other Cylindrical Objects.


Ink Bottle

First grade ink bottle.
0 Colors: CMYKLcLM+White+Vanish.
Low ink Volume alarm function equipped.


Leadshine motor

Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.


Intelligent ink scraping design

Automatically printhead cleaning and moisturizing.
Push-pull capping system design, can quickly reset to original position.


Honosoft carriage board

Mature and stable control system.
Carriage Board with fan cooler.
ensure long time & stable working.



Specifications

Model KingJet KJ-320UV
Printhead Ricoh Gen5 print head (8pieces)
Maxmum Print Width 3240mm
Printing Resolution Draft Mode                                                   720X1200dpi 6pass @ 20sqm/h
Production Mode                                           720X900dpi 8pass @ 12sqm/h
Quality Mode                                                 720X1200dpi 12pass @ 8sqm/h
Ink Type                                                                        UV Ink
Color                                                                       4 colors（K, C, M, Y)
ink Supply System                                              digital Ink Pressure System
Media Width 3200mm
Media Type Wall covering paper,Canvas,outdoor&event banner,Vehicle Graphics, Backlits, textiles vinyl sheet indoor, light box cloth.
Print head Height 2-8mm Above Media step less Adjustable
Heating System Intelligent embedded heating system
Media Adsorption System Suction fan sucking step less adjustment
Auto Media System Equipped（Max Media Weight 60kg）
Digital Ink press system Ink Press Function & Moisturizing System
Clamp Combined anti-warping Clamps
Auto take up system 80kg heavy type take-up system
Print Interface Hi-USB2.0
RIP software Photoprint, Maintop
Input power AC220V,50Hz / 60Hz 800W- 2500W
Working environment Temperature：18-32℃ 　　Humidity：46-65%
Machine Dimension L5000XW1275XH1580mm; Net Weight: 880Kgs
Package Dimension L5150x W1120 x H1860mm; Gross Weight: 1000Kgs
