KINGJET KJ-2513UV Ricoh Gen5 UV Printer

RICOH Grayscale Technology Adjustable 7/14/21 pl Drop Size 400W Panasonic AC Servo Motor System Durable German IGUS Towline

Inquire Now Next Product

HIGH RESOLUTION INDUSTRIAL PRINTHEAD WITH GREY SCALE.

Adopt Ricoh GEN5 Piezoelectric printhead with grey scale, each nozzle has 384/1280 printhead, the resolution can be 2400DPI. Industrial printhead has its good speed and stability. Dimensions: 89 x 25 x 69 mm (excluding cables) Head materials: SST, Nickel alloy and Epoxy Adhesive Nozzle plate surface: Coated SST Number of nozzles: 4 x 320 nozzles Nozzle spacing: 0.1693 mm Nozzle density: up to 600 npi Piezo type: D33 Stacked PZT Temperature control: Integrated Heater and Thermistor Operator temperature range: Up to 80° C Native drop volume: 7 pl Drop volume range: 7 - 35 pl Drop velocity: 7 m/s Jetting frequency: Up to 60 kHZ Use famous brand UV tube and it can solify the ink more effectively. Long time lifetime and more stable quality.

Uniquer Technology

Control Panel

Simple And Convenient,with Led Screen.
Easily Switch to different Interfaces.
Easily Turn or Off.

Small Cariage Form

Full Alumunium carriage frame ensure accurate Printing.
Automatic Adjust carriage height for different materials.
Proffesional positive UV damper ensure stable ink supply.
Anti-collision sensor.

Cylinder Clampe

Printing Options, Adjustable Spacing.
Can Printing Bottle,mug,Glass Bottlesand Other Cylindrical Objects.

Ink Bottle

First grade ink bottle.
0 Colors: CMYKLcLM+White+Vanish.
Low ink Volume alarm function equipped.

Leadshine motor

Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.

Intelligent ink scraping design

Automatically printhead cleaning and moisturizing.
Push-pull capping system design, can quickly reset to original position.

Honosoft carriage board

Mature and stable control system.
Carriage Board with fan cooler.
ensure long time & stable working.

Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc.

Specifications

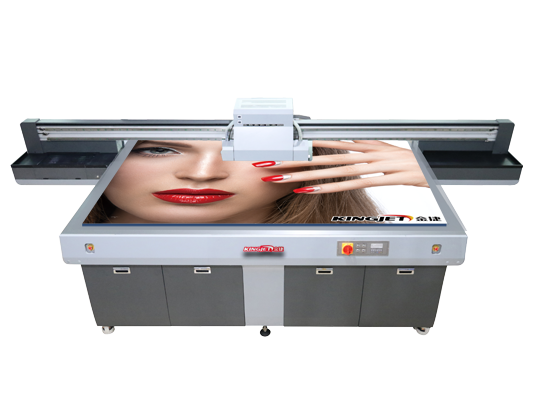

Model	KINGJET KJ-2513 UV Flatbed printer
Color	C M Y K or C M Y K Lc Lm (white color and varnish are optional)
Printhead	RICOH GEN 5 7PL(Piezoelectric Printhead GEN 5 7PL)
Top Resolution	600DPI, 900DPI, 1200DPI, 1800DPI, 2400DPI
Speed	Up to 38 ㎡/h
Media	Wood panel, Aluminum panel, Door plank, Paperboard,PVC expansion sheet, Ceiling panel, Glass, Ceramics, Acrylic, PVC, etc.
Size of Material	Maximum Printing Area：Panel：2.68m（width）x 1.22m（depth）Maximum Material Size：Panel：2.75m（width）x 1.40m（depth)
Thickness of Material	Panel：≤ 95mm
Weight of Material	Panel：≤ 45 kg/m2
Image format	Tiff,JPG,Postscript3,EPS,PDF,AI etc.
Ink	Environmental protective UV ink
Ink Capacity	2.5L drums, automatic ink control, non-stop and ink
Power Supply	AC,50HZ/60HZ , 220v（±10%）＞15A ;6.5kw
Printing software	Photoprint
Optional	Air Compressor
Net & Gross	1400kg/1500kg

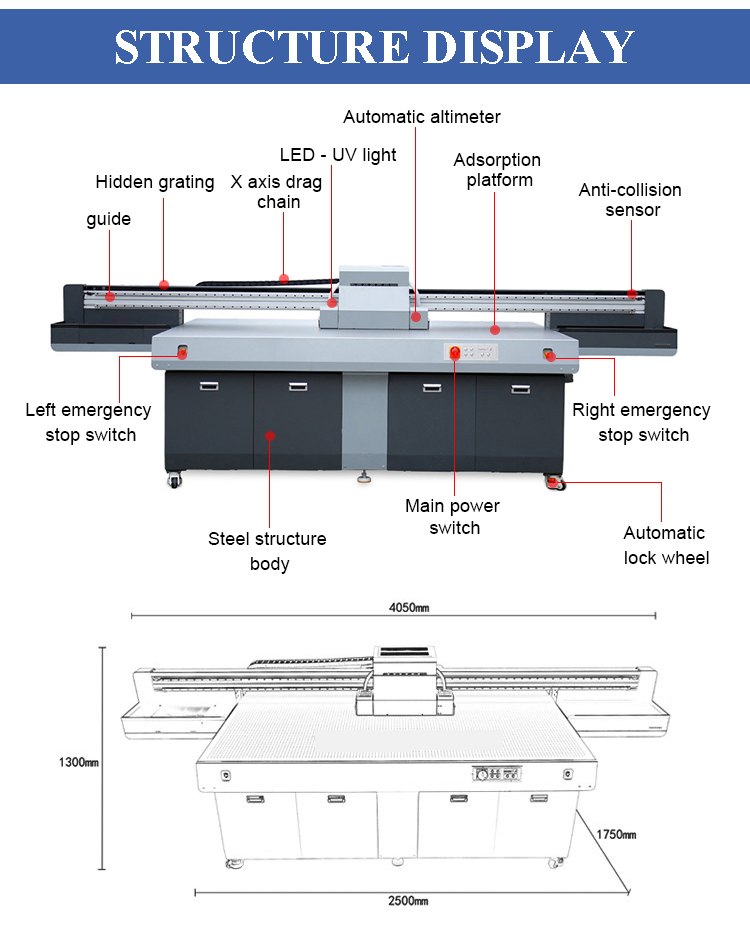

dimensions (W x D x H)	4.75 x 2.50 x 1.43（M）
Package dimensions (W x D x H)	4.26 x 1.87 x 1.43 （M）
Operation environment	Temperature: 15-30℃(59-86℉) Humidity: 40-80% RH (non-condensing) Operating Noise ≤80dB
Safety Certification	CE Certification/SGS
