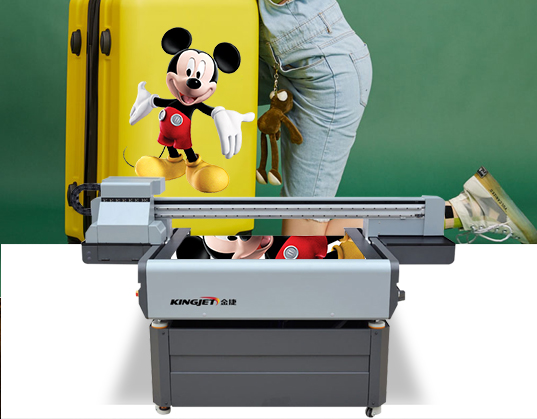

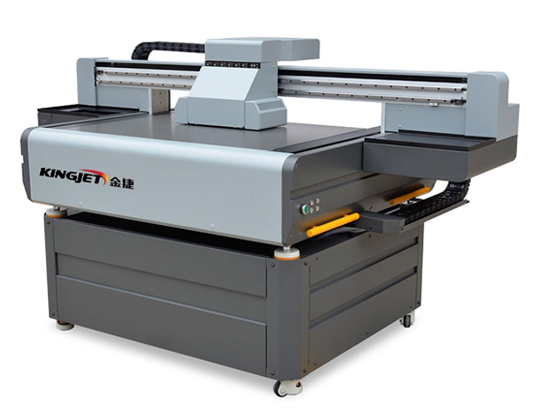

KINGJET KJ-9060UV Ndustrial Grade TOSHIBA CE4-M Printhead Flatbed Printer





KINGJET KJ-9060UV Ndustrial Grade TOSHIBA CE4-M Printhead Flatbed Printer

Equipped with TOSHIBA CE4-M,500mm printing height. Media Type:Glass,Acrylic,Ceramic,Metal,Paper,Wood,Leather,PVC,PP,PE,PTFE,etc.



Inquire Now Next Product


KINGJET KJ-9060UV Ndustrial Grade TOSHIBA CE4-M Printhead Flatbed Printer

With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. KJ-9060UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels and more.



Uniquer Technology


Control Panel

Simple And Convenient,with Led Screen.
Easily Switch to different Interfaces.
Easily Turn or Off.


Small Cariage Form

Full Alumunium carriage frame ensure accurate Printing.
Automatic Adjust carriage height for different materials.
Proffesional positive UV damper ensure stable ink supply.
Anti-collision sensor.


Cylinder Clampe

Printing Options, Adjustable Spacing.
Can Printing Bottle,mug,Glass Bottlesand Other Cylindrical Objects.


Ink Bottle

First grade ink bottle.
0 Colors: CMYKLcLM+White+Vanish.
Low ink Volume alarm function equipped.


Leadshine motor

Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.


Intelligent ink scraping design

Automatically printhead cleaning and moisturizing.
Push-pull capping system design, can quickly reset to original position.


Honosoft carriage board

Mature and stable control system.
Carriage Board with fan cooler.
ensure long time & stable working.



Specifications

Model KJ-9060UV Flatbed Printer
Printhead TOSHIBA CE4-M
Printhead Number 4-8 pieces
RIP Software Photoprint, Maintop
Color Configuration CMYK, CMYK+W, CMYK+LcLm
Printing Resolution 600*900DPI, 600*1200DPI, 600*1800DPI
Printing speed High speed mode:                                                             25m²/h
Production mode:                                                      20m²/h
High Resolution Mode:                                             16m²/h
Media type Customized gifts, Handicraft works, Mobile phone case, Glass,Metal, Acrylic, PVC, etc.
Size of Material Maximum Print Area：Panel: (700mm x 1050mm)
Size of Printing Maximum Print Area：Panel: (600mm x 900mm)
Heating System LED UV water-cooling curing system
Thickness of Material Panel：≤ 500mm
Weight of Material Panel：≤ 45 kg/m2
Image format Tiff,JPG,Postscript3,EPS,PDF,AI etc.
Ink Environmental protective UV ink
Power Supply AC 50hz/60hz , 220V(±10%)＞8A ; 1.7kw (exclusive fan)
Operation environment emperature 15-30℃(59-86℉) Humidity 40-80% RH (non-condensing)/td>
Input Power Operating Noise ≤80dB
Net & Gross Weight 200kg/250kg
Package Dimension L1060×W1960×H1150mm
