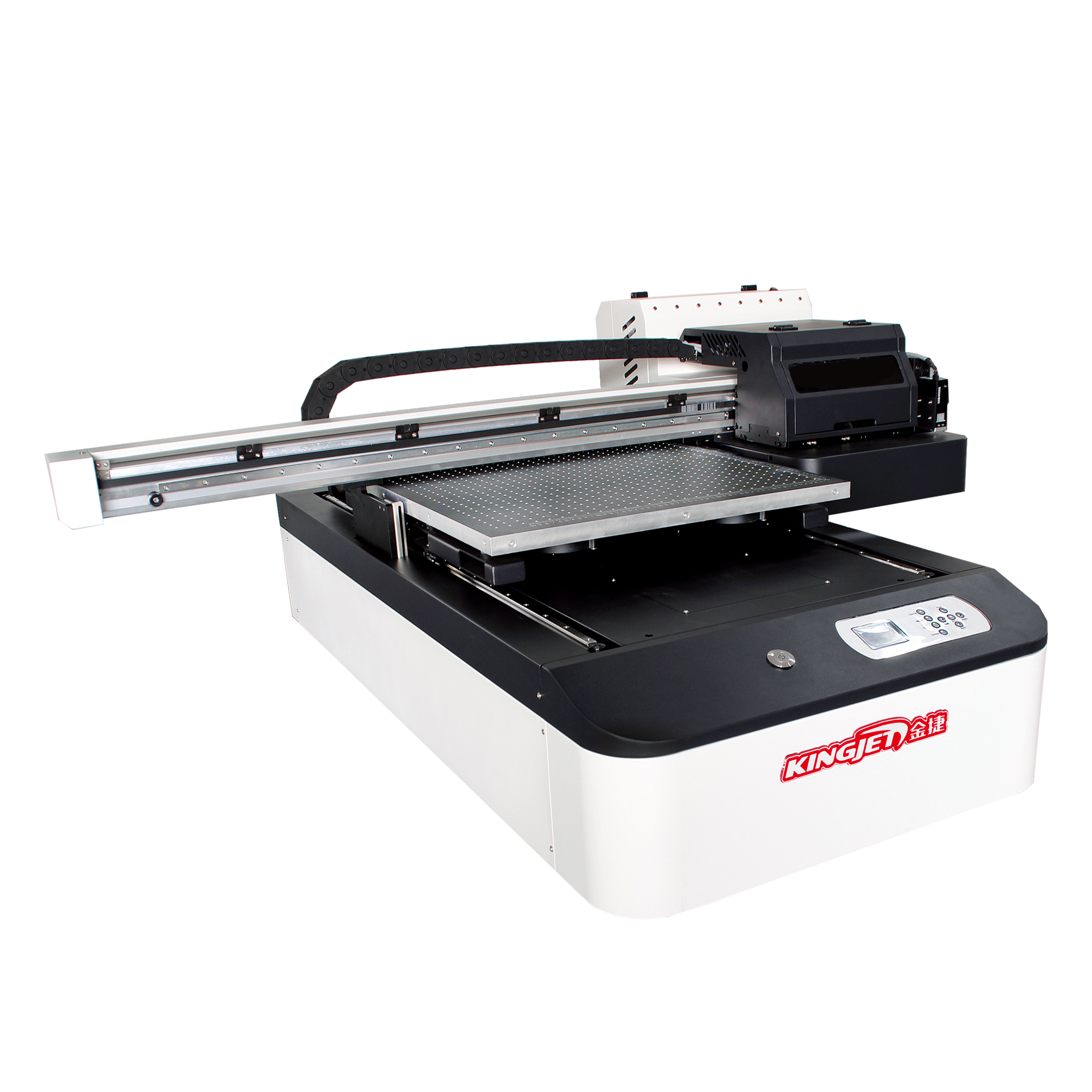

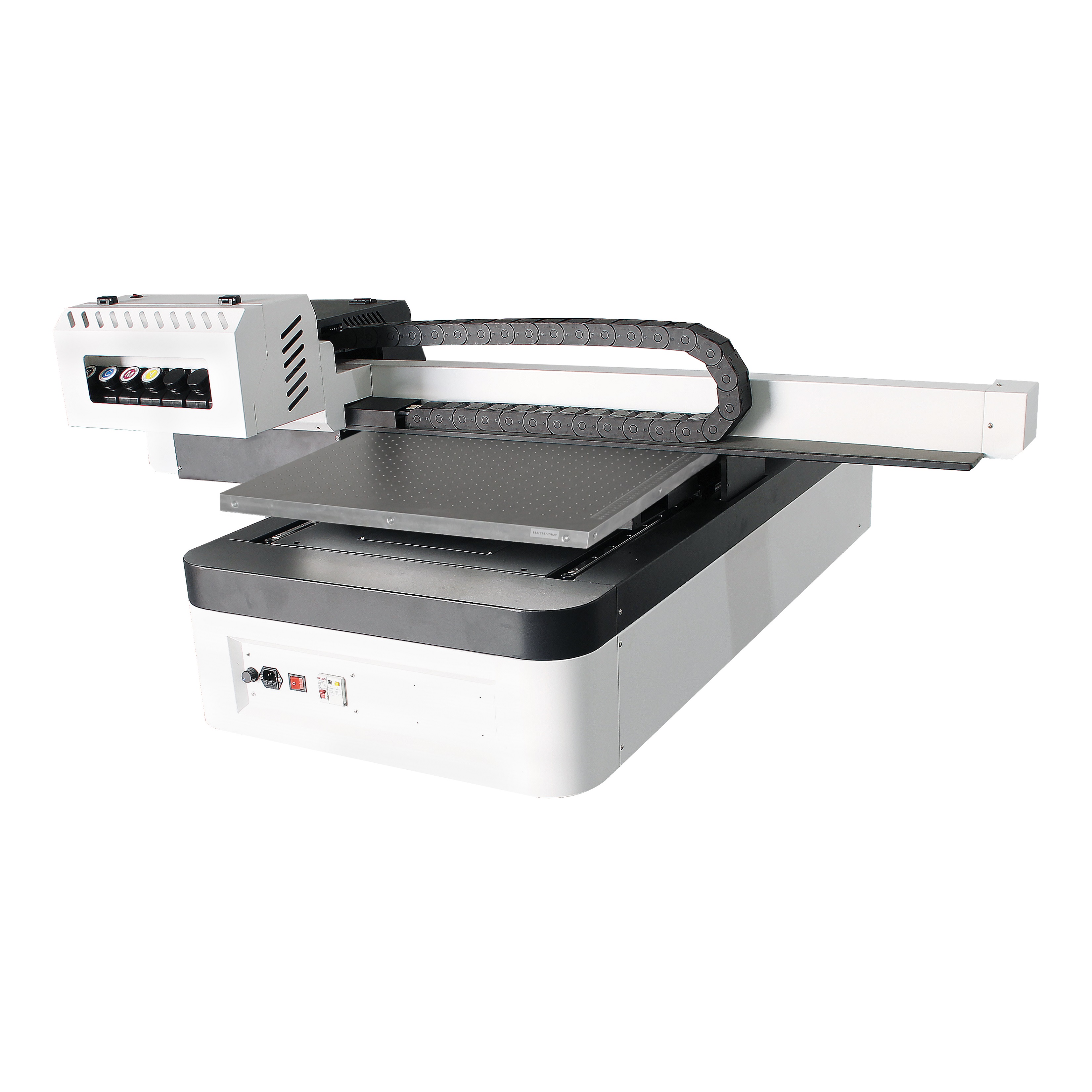

KINGJET KJ-6090UV Epson XP600 UV Flatbed Printer





KINGJET KJ-6090UV Epson XP600 UV Flatbed Printer

KingJet KJ-6090UV flat material and cylinderical products printing， Maximum print height 12 cm.



Inquire Now Next Product


Why did you choose our 6090 uv printer :

1.Low ink volume warning ,White Ink circulation system.
2.Automatic sensing up and down system, 12CM printhead height adjustable.
3.Support CMYKLcLm+W+V printing at same time with fast speed, high efficiency and time saving.
4.Adopting imported Japanese THK linear guide, high precision and stable.Strong structure, Ensure the printer for long life working.



Structure Display

Uniquer Technology


Control Panel

Simple And Convenient,with Led Screen.
Easily Switch to different Interfaces.
Easily Turn or Off.


Small Cariage Form

Full Alumunium carriage frame ensure accurate Printing.
Automatic Adjust carriage height for different materials.
Proffesional positive UV damper ensure stable ink supply.
Anti-collision sensor.


Cylinder Clampe

Printing Options, Adjustable Spacing.
Can Printing Bottle,mug,Glass Bottlesand Other Cylindrical Objects.


Ink Bottle

First grade ink bottle.
0 Colors: CMYKLcLM+White+Vanish.
Low ink Volume alarm function equipped.


Leadshine motor

Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.


Intelligent ink scraping design

Automatically printhead cleaning and moisturizing.
Push-pull capping system design, can quickly reset to original position.


Honosoft carriage board

Mature and stable control system.
Carriage Board with fan cooler.
ensure long time & stable working.



Specifications

KingJet Digital KJ-6090 UV Flatbed Printer
Model KingJet KJ-6090UV
Printhead 3 Epson XP600 / 4 TOSHIBA CE4
Printing Table Printing Speed                                                        10 sqm/h(4pass)
Production Mode                                                     8 sqm/h(6pass)
High Resolution Mode                                             6 sqm/h(8pass)
Ink Type                                                                        Honeytek UV Ink(from US)
Color                                                                       CMYKLcLmCMYKLcLm+W+V
Media Size of Printing                                                        600*900mm
Type                                                                        Personalized gifts, mobile phone cells, Title, Glass, Metal painting， Signboard，Paper case,                                                                                                  Wine bottle, Acrylic board, PVC board etc
Guide THK linear guide from Japan
Motor Leadshine intergrated motor
Image format PNG , JPG , JPEG , TIFF
Output port USB 2.0
Running system Windows7 , Windows 10
RIP software Pothoprint , Onyx , Maintop
Power supply spec AC110V±10%，AC220V±10% ,50 / 60±1HZ
Power 800w-1000w
Operation environment Temp22℃-28℃， Humidity:40%RH-60%RH
Dimension size 1600MM(L)*1535MM(W)*630MM(H)
Net & Gross Weight 160kg/ 200kg
Package size 1740MM(L)*1690MM(W)*800MM(H)
