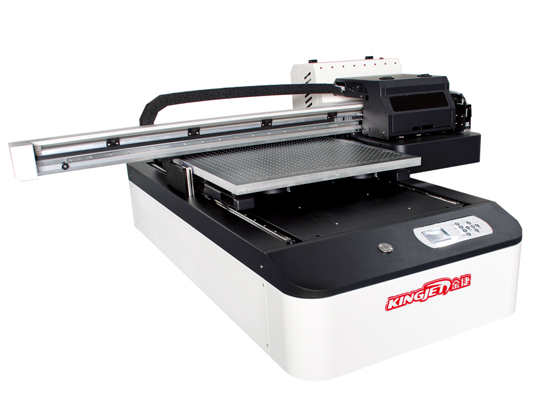

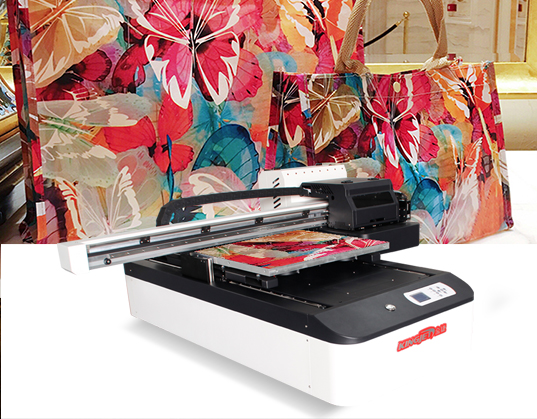

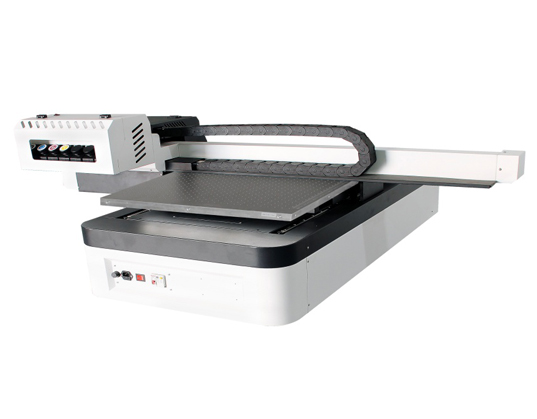

KINGJET KJ-6090UV 60x90cm UV Flatbed LED Printer

Equipped with Epson XP600/TOSHIBA CE4,Maximum print height 12cm. Type:Phone Case,Pen,Golf,USB Disk,Lighters,CD,PVC Card,Photo Paper,Leather Bag,Bottle,etc.

Inquire Now Next Product

KINGJET KJ-6090UV 60x90cm UV Flatbed LED Printer

1.Low ink volume warning ,White Ink circulation
system. 2.Automatic sensing up and down system, 12CM printhead height adjustable.
3.Support CMYKLcLm+W+V printing at same time with fast speed, high efficiency and time saving.
4.Adopting imported Japanese THK linear guide, high precision and stable.Strong structure, Ensure the printer for long life working.

Uniquer Technology

Control Panel

Simple And Convenient,with Led Screen.
Easily Switch to different Interfaces.
Easily Turn or Off.

Small Cariage Form

Full Alumunium carriage frame ensure accurate Printing.
Automatic Adjust carriage height for different materials.
Proffesional positive UV damper ensure stable ink supply.
Anti-collision sensor.

Cylinder Clampe

Printing Options, Adjustable Spacing.
Can Printing Bottle,mug,Glass Bottlesand Other Cylindrical Objects.

Ink Bottle

First grade ink bottle.
0 Colors: CMYKLcLM+White+Vanish.
Low ink Volume alarm function equipped.

Leadshine motor

Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.

Intelligent ink scraping design

Automatically printhead cleaning and moisturizing.
Push-pull capping system design, can quickly reset to original position.

Honosoft carriage board

Mature and stable control system.
Carriage Board with fan cooler.
ensure long time & stable working.

Specifications

Model	KINGJET KJ-6090UV 60x90cm UV Flatbed LED Printer
Printhead	3 Epson XP600 / 4 TOSHIBA CE4
Printing Table	Sinkable Platform
Printing speed	High speed 10 sqm/h(4pass) Production Mode 8 sqm/h(6pass) High Resolution Mode 6 sqm/h(8pass)
Ink	Type Honeytek UV Ink(from US) Color CMYKLcLmCMYKLcLm+W+V
Media	Size of Printing 600*900mm Type Personalized gifts, mobile phone cells, Title, Glass, Metal painting， Signboard，Paper case, Wine bottle, Acrylic board, PVC board etc
Guide	THK linear guide from Japan
Motor	Leadshine intergrated motor
Image format	PNG , JPG , JPEG , TIFF
Output port	USB 2.0
Running system	Windows7 , Windows 10
RIP software	Pothoprint , Onyx , Maintop
Power supply spec	AC110V±10%，AC220V±10% ,50 / 60±1HZ
Power	800w-1000w
Operation environment	Temp22℃-28℃， Humidity:40%RH-60%RH
Dimension size	1600MM(L)1535MM(W)630MM(H)
Net & Gross Weight	160kg/ 200kg
Package size	1740MM(L)1690MM(W)800MM(H)
