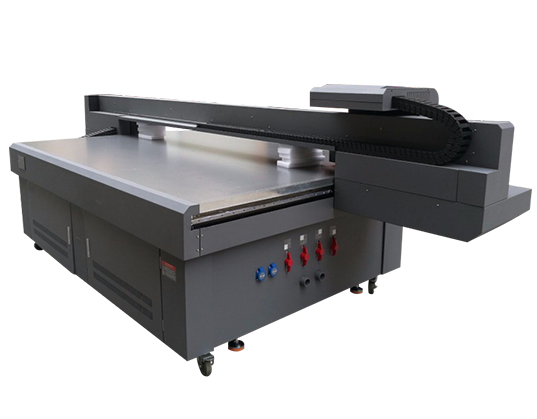

KINGJET KJ-2513UV Digital Large LED Flatbed Printer





KINGJET KJ-2513UV Digital Large LED Flatbed Printer

Equipped with Ricoh Gen5,Industrial printhead has its good speed and stability. Media Type:Glass,Acrylic,Ceramic,Metal,Paper,Wood,Leather,PVC,PP,PE,PTFE,etc.



Inquire Now Next Product


KINGJET KJ-2513UV Digital Large LED Flatbed Printer

With the capability to print onto rigid substrates of any surface, it offers the ability to produce a diverse range of prints for both indoor and outdoor advertisement, decoration, DIY promotion products and gifts.Use famous brand UV tube and it can solify the ink more effectively. Long time lifetime and more stable quality.



Uniquer Technology


Control Panel

Simple And Convenient,with Led Screen.
Easily Switch to different Interfaces.
Easily Turn or Off.


Small Cariage Form

Full Alumunium carriage frame ensure accurate Printing.
Automatic Adjust carriage height for different materials.
Proffesional positive UV damper ensure stable ink supply.
Anti-collision sensor.


Cylinder Clampe

Printing Options, Adjustable Spacing.
Can Printing Bottle,mug,Glass Bottlesand Other Cylindrical Objects.


Ink Bottle

First grade ink bottle.
0 Colors: CMYKLcLM+White+Vanish.
Low ink Volume alarm function equipped.


Leadshine motor

Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.


Intelligent ink scraping design

Automatically printhead cleaning and moisturizing.
Push-pull capping system design, can quickly reset to original position.


Honosoft carriage board

Mature and stable control system.
Carriage Board with fan cooler.
ensure long time & stable working.



Specifications

Model KINGJET KJ-2513UV Flatbed printer
Color C M Y K or C M Y K Lc Lm (white color and varnish are optional)
Printhead RICOH GEN 5 7PL(Piezoelectric Printhead GEN 5 7PL)
Top Resolution 600DPI, 900DPI, 1200DPI, 1800DPI, 2400DPI
Speed Up to 38 ㎡/h
Media Wood panel, Aluminum panel, Door plank, Paperboard,PVC expansion sheet, Ceiling panel, Glass, Ceramics, Acrylic, PVC, etc.
Size of Material Maximum Printing Area：Panel：2.68m（width）x 1.22m（depth）Maximum Material Size：Panel：2.75m（width）x 1.40m（depth)
Thickness of Material Panel：≤ 95mm
Weight of Material Panel：≤ 45 kg/m2
Image format Tiff,JPG,Postscript3,EPS,PDF,AI etc.
Ink Environmental protective UV ink
Ink Capacity 2.5L drums, automatic ink control, non-stop and ink
Power Supply AC,50HZ/60HZ , 220v（±10%）＞15A ;6.5kw
Printing software Photoprint
Optional Air Compressor
Net & Gross 1400kg/1500kg
dimensions (W x D x H) 4.75 x 2.50 x 1.43（M）
Package dimensions (W x D x H)4.26 x 1.87 x 1.43 （M）
Operation environment Temperature: 15-30℃(59-86℉) Humidity: 40-80% RH (non-condensing) Operating Noise ≤80dB
Safety Certification CE Certification/SGS
