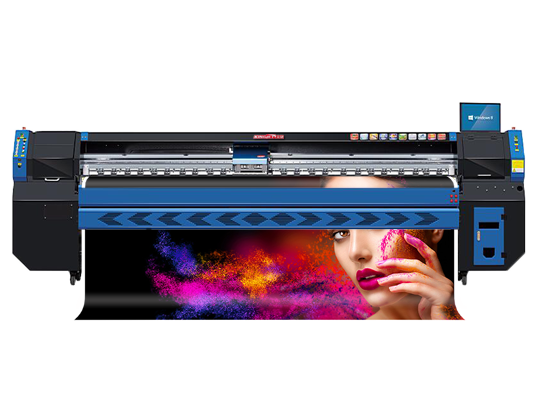

KingJet Inkjet Printing Machine





KingJet Inkjet Printing Machine

Equipped with Japan Konica 512i solvent print head, KINGJET KJ-3208G 3.2m printer can print at speeds of up to 240 sqm/h..



Inquire Now Next Product


Multiple 3 Phases Constant Heating System Multiple 3 phases constant heating system promotes ink absorption of material, which makes printing clearer, dry faster and image stay for longer. Latest Industrial-grade Konica Printhead Newest Konica Minolta 512I or 1024I print heads, with much wider nozzles, and latest technology, more efficient, faster printing. Imported Panasonic AC servo motor Imported 400W Panasonic AC servo motor system, the powerful motor can keep the printing work for long time. Strong Aluminum Beam and HIWIN Rail Adopt the strong aluminum beam and HIWIN rail; longtime use in printing and head carrier moves steadily and quietly. The German IGUS chain has been certified with its quality. Feeding Up Gear Protective Cover Feeding up gear protective cover, which protect the operator or engineer from the risk of hurt. Infrared heating system and drying fanInfrared heating system and drying fan can satisfy the large printing output.

Detail Dislay


Alumunium Girder & Platform

High precision & durable printing.


Elevation Type Capping Station

New design capping system, more durable.


Mute guide rails

high pricison & smooth operation to ensure perfect quality output.


Infrared & Fan Drying System

High efficency drying system,printing continuously.


Feeding & Take-up System

Constant tension,ensure accurate & smooth operation.

Application


Outdoor Flex Banner

Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.


Vehicle Wraps

Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.


Outdoor Posters and Backlit Displays

Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.


Outdoor Mesh

With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.



Specifications

Model SPECIFICATION OF KingJet KJ-3208G SOLVENT PRINTER
Max Print Width 3200mm (10.5ft)
Printing resolution 480DPI (Physical)
Product Model KM512I-30PL-4H                                                                                              KM512I-30PL-8H
Output(sqm/h) Print Mode                                     output speed(sqm/h)                                  Print Mode                         Output Speed(sqm/h)
480X360dpi 2pass                            120                                                         480X360dpi 2pass                         240
480X540dpi 3pass                            90                                                           480X540dpi 3pass                         180
480X720dpi 4pass                            60                                                           480X720dpi 4pass                         120
Auto Media Feeding System Equipped (Max. Media Weight 120kg )
RIP Software PhotoPRINT 10.5 or Maintop V5.30
Media Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Printhead Height 2 to 4 mm Above Media Adjustable
Cleaning System Auto Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Input Power AC 220V,50HZ,4500W
Machine Dimension L4,850 x W1010 x H1,340 mm; Net Weight: 680Kgs (1,499lbs)
Package Dimension L5230 x W1040 x H1480mm; Gross Weight: 900Kgs (1,984lbs); Two units in one 20 feet container
