KINGJET DX5 Series Eco Solvent Printer KJ-1802E

Epson dx5 print head, smallest drop 3.5pl Printing resolution up to 1440dpi High resolution guide rail, stable & long durability Embedded feeding & taking up system



Inquire Now Next Product







Strong Body Structure

Effectively ressist vibration when printing quickly,Make sure that each dot of ink falls accurately.


Elevation Type Capping Station

New design capping system, more durable.


Alumunium Girder & Platform

High precision & durable printing.


Infrared & Fan Drying System

High efficency drying system,printing continuously.


Mute guide rails

high pricison & smooth operation to ensure perfect quality output.


Feeding & Take-up System

Constant tension,ensure accurate & smooth operation.

Direct print on materials range of PP, vinyl, light box cloth, flex, canvas, leather, reflective material etc.



Specifications

Model KINGJET KJ-1802E ECO SOLVENT PRINTER
Printhead EPSON DX5
Number of Printhead DX5-2H

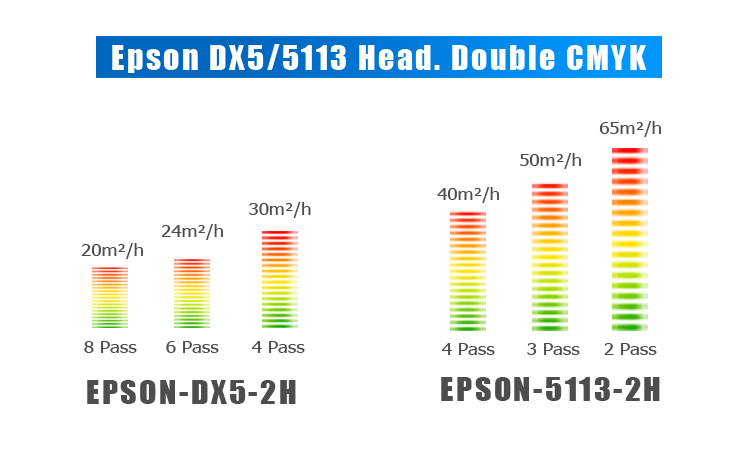

Printing Speed 4Pass                                    30sqm/h
6Pass                                    24sqm/h
8Pass                                    20sqm/h
Media Width 1880mm（74inch）
Ink Type Latex ink
Ink Color 4 colors(K, C, M, Y)
Ink Supply System Auto Cleaning Capping System
Media Type uncoated wallpaper, bamboo weaving, grass weaving, canvas, PP, photo paper, light film, drawing paper canvas, vinyl, reflective material etc.
Printhead Height 2-8mm Above Media Adjustable
Heating System Infrared & Fan Drying System(1601S fan drying)
Media Adsorption System Suction fan sucking step less adjustment
Auto Media System Equipped(Max Media Weight 60kg)
Auto cleaning capping Auto Capping System&Moisturizing System
Clamp Combined Anti-warping Clamps
Auto Take Up System 60kg Heavy Type Auto Take-up System
Print Interface Hi-USB2.0
RIP Software Maintop, Photoprint
Input Power AC220V,50Hz / 60Hz 800W- 2500W
Working environment Temperature：18-32℃ 　　Humidity：46-65%

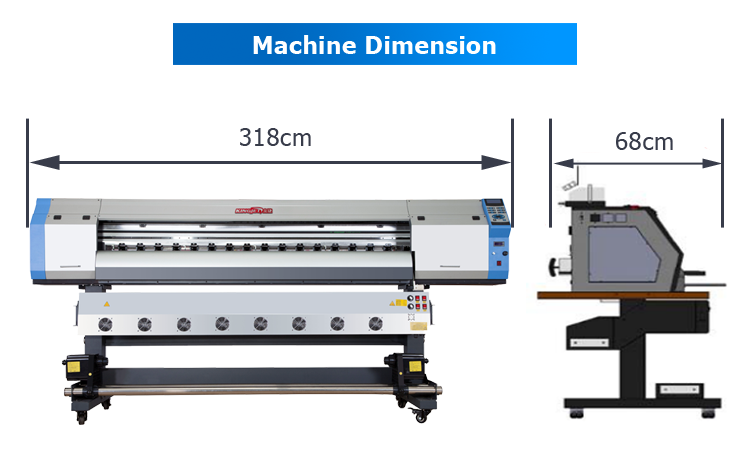

Machine Dimension L3180xW850xH1470mm; Net Weight:450Kgs
Package Dimension L3350xW690xH740mm;Gross Weight:540Kgs
