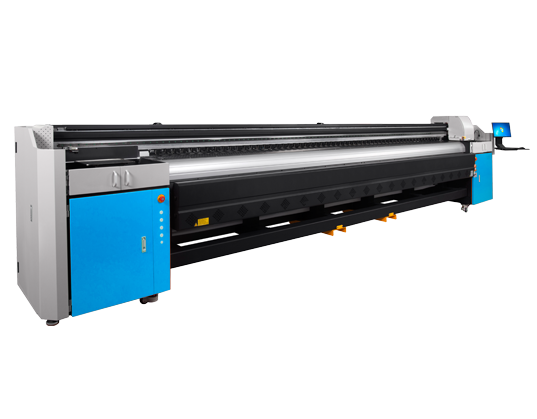

KingJet 5m Large Format Printer

5m large format printer for outdoor advertising: flex banner, film, billboard, etc.

Inquire Now Next Product

5 meter large format solvent printer for outdoor advertising: flex banner, film, billboard, etc.

Detail Dislay

Alumunium Girder & Platform

High precision & durable printing.

Elevation Type Capping Station

New design capping system, more durable.

Mute guide rails

high pricison & smooth operation to ensure perfect quality output.

Infrared & Fan Drying System

High efficency drying system,printing continuously.

Feeding & Take-up System

Constant tension,ensure accurate & smooth operation.

Application

Outdoor Flex Banner

Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.

Vehicle Wraps

Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.

Outdoor Posters and Backlit Displays

Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.

Outdoor Mesh

With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.

Application

Outdoor Flex Banner

Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.

Vehicle Wraps

Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.

Outdoor Posters and Backlit Displays

Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.

Outdoor Mesh

With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.

Specifications

Print Technology	Industrial piezoeletric inkjet
Ink Type	Solvent Ink
RIP Software	Photoprint, Maintop
Color Configuration	4 Color (CMYK)
Operating System	Windows 7/8 64bits
Image Format	TIFF/JPEG/PDF/EPS
Printhead Height	2-8mm above media adjustable
Ink Capacity	5L Per Main Tank of Each Color
Maximum Printing Width	5100mm (16.73ft)
Maximum Media Standard	5200mm (17ft)
Media Type	Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Media Transmit	Media feeding system (Max media weight: 120kg)
Heating & Drying System	Equipped (Infrared Ray+Fan Drying)
Data Interface	Hi-Speed USB 2.0
Temperature	15-32 ℃ (59-90℉), 20℃(60℉) or more recommended 35 to 80% RH (no condensing)
Humidity	35 to 80% RH (no condensing)
Maximum Power	＞20A, 4.0KW
Input Power	AC220V (±5%), 50HZ/60HZ
Machine Dimension/Weight	L7,015×W950×H1490 mm / Net Weight: 1200kgs
Package Dimension/Weight	L7,095×W1150×H1530 mm / Net Weight: 1350kgs
