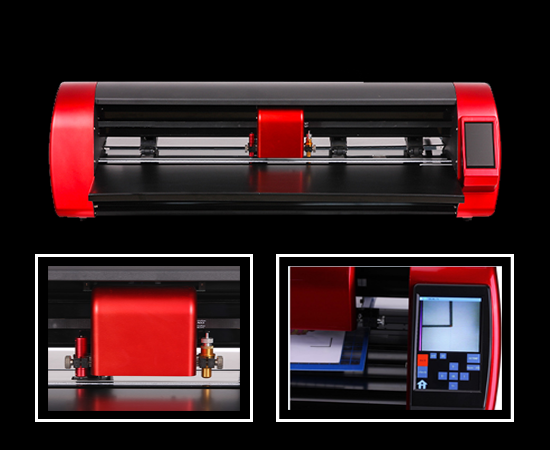

SKYCUT D Series Dual Head Cutting Plotter






SKYCUT D Series Dual Head Cutting Plotter

Skycut D Series is a double head cutting plotter which has repeat to repeat function which does not need commands again and again for same cutting command.



Features

1. 2000G massive cutting force for cutting hard materials like HTC, EVC etc.
2. Repeat-after-repeat function for ongoing commands without giving again.
3. Classic colour match of glossy red and black colour.
4. Adjustable pinch feed for adjusting and providing grip to material.
5. Multi-interface which cover USB, hard drive, WIFI etc.



Inquire Now Next Product




Specifications

Product Skycut D24 Skycut D48
Max Media Width 720mm 1350mm
Max Cutting Width 560mm 1190mm
Max Contour Cutting Width 450mm 1080mm
Packing Size 1000*360*388mm 1620*360*388mm
Packing Gross Weight 18.5kg 39.5kg
Max Force 2000g 2000g
Number of Heads 2 2
Floor Stand option Yes
Auto Contour Cut Camera Camera
CorelDRAW Directly Yes Yes
Power Supply, V/Hz 220/50 220/50
Laser Engrave Option No No
Scratch Engrave Yes Yes
Motor Stepper Stepper
Processor Memory 128MB 128MB
Cutting Precision +/- 0.01mm +/- 0.01mm
Repeat Precision 0.082 mm 0.082 mm
Max Moving Speed 700mm/s 700mm/s
Max Cutting Speed 600mm/s 600mm/s
Connector Interface USB flash/ WIFI(option)/ USB cable USB flash/ WIFI(option)/ USB cable
Power <100W <100W
Working Environment +5°C - +35°C +5°C - +35°C
Db Values 75 75
