Brand New Konica 512 LN 42pl Printhead

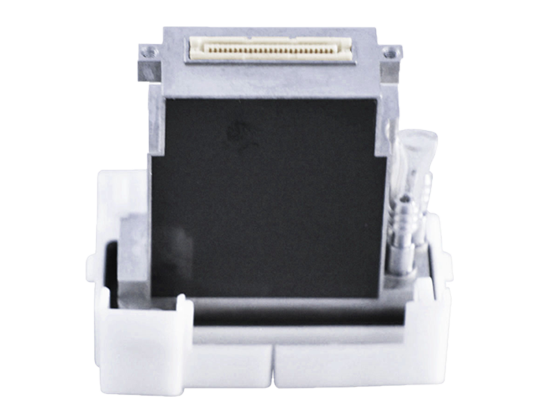

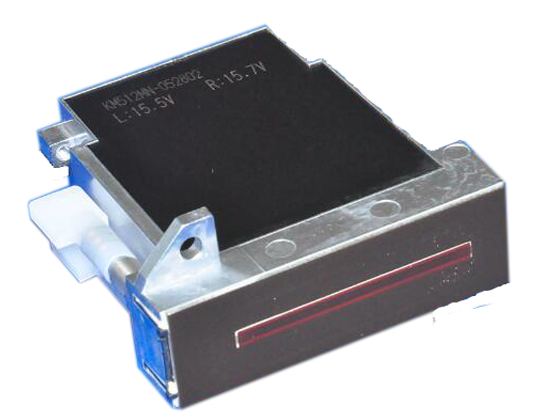

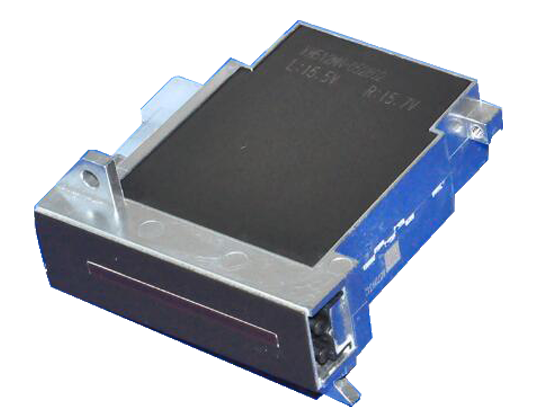

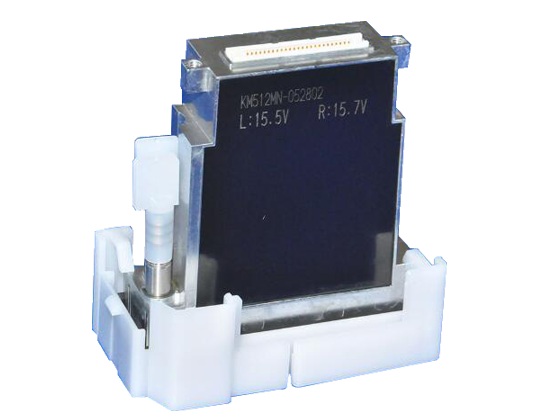

The Konica Minolta KM512 LN Print Head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only. The Konica Minolta KM512 LN print head has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi. It is compatible with oil based, solvent. This print head is also known as the Konica Minolta KM512 LNX. This is Konica original print head and it includes the Head ID and the necessary waveform information.



Inquire Now Next Product






Product Description

To be used with:
Agfa: Anapurna Mv / :Anapurna Mw
Anhui LiYu: Anhui Liyu Apollo PT-KL, Apollo PTP1804-KL, Apollo PTP1806-KL, Apollo PTP1808-KL, Apollo PTP3204-KL, Apollo PTP3206-KL, Apollo PTP3208-KL, Apollo PTP18/3202-KC, Apollo PTP18/3204-KC, Apollo PTP18/3206-KC, Apollo PZ3204-KX, Apollo PZ3206-KX, Apollo PZ3208-KX
Aestrik: Aestrik InWear S3304K5 / InWear S3308K5
Flora: Flora HJ3200, Flora LJ320K
HUMAN: HUMAN Ultra-Jet 3208, HUMAN Ultra-Jet3212, HUMAN Ultra-Jet 3216, HUMAN K-Jet 3208
JHF Vista: Vista 2506 / 3306 / S5004F / S5006FS / H8 3308F / H8 3304F / H8 3306F
MYJET: MYJET WB320 / LB320 / LE320, MYJET LA3204KM, MYJET LA3208KM,MYJET LB3204KM, MYJET LB3208KM, MYJET WD3212KM, MYJET WD3216KM
SKYJET: SKYJET-SD-3308KL-4C, SKYJET-SD-3312KL-6C, SKYJET-SD-3316KL-4C, SKYJET-SD-3324KL-6C, SKYJET-SD-5216KL-4C, SKYJET-SD-5224KL-4C
Other Brand: JHF A8 3312F, JHF A8 3308F, LEOPARD H8 3308F, LEOPARD H8 3306FS, Rodin K4320-A / K4320-B, Skynet PC-series / HS-series / Taimes T5 / T7, Dilli Neo Titan UVT-1606
Remarks: Original


Note:
The KM512 MN 42PL is not suitable for the varnish or white ink on the Agfa :Anapurna Mv and Anapurna Mw printers.



Specifications

Product Name KM512L                                                                            KM512M                                                                            KM512S
Drive Mode Piezo Drop-On-Demand
Nozzle Resolution 180dpi×2 rows = 360dpi
Nozzle Number 256 nozzles×2 rows = 512
Nozzle Spacing 70.5μm =(141um 2 rows)
Drop Volume 42pl                                                                                   14pl                                                                                   4pl
Firing Frequency 7.6kHz                                                                             12.8kHz                                                                               23.0kHz
Print Width 1.4" (36.1mm)
Dimensions 2.6"*1.6"*2.8" (67*40*72mm)(W*D*H)
Solvent Ink OK                                                                                              OK                                                                                              OK
UV ink OK OK                                                                                             OK                                                                                              OK
Oil Ink OK OK                                                                                             OK                                                                                              OK
Max. Drops in Greyscale -                                                                                                    3                                                                                 drops 7 drops
With Heater (H) Available                                                                                   Available                                                                                   Available
