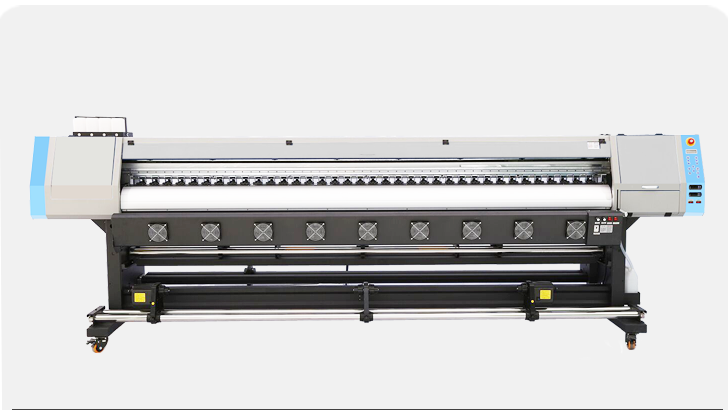

Kingjet XP600 Printhead Eco Solvent Printer KJ-1802S






Kingjet XP600 Printhead Eco Solvent Printer KJ-1802S

Equipped with 1 to 4 Epson XP600 print head, KINGJET KJ1802S eco solvent printer is more Cost-effective than dx5 eco solvent printer.



Inquire Now Next Product

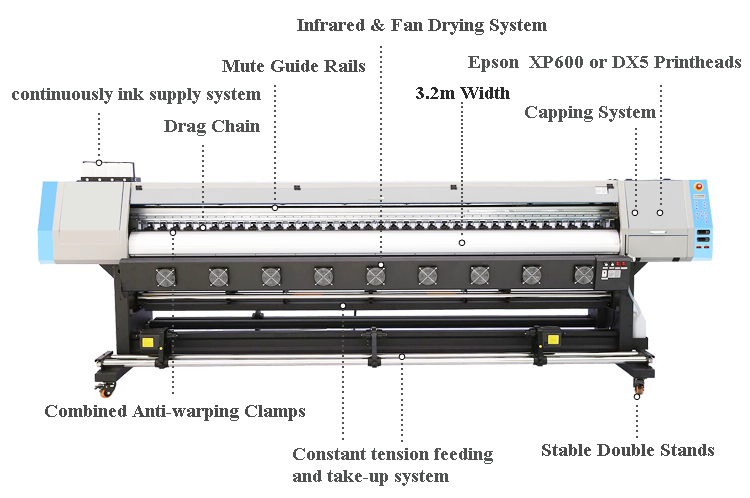

More Cost-effective, Save Your Business Cost

New design capping station system, more reliable and durable
Constant tension feeding-up & take-up system to ensure accurate and smooth operation
Adopt mute guide rails, high precision and smooth operation to ensure the perfect quality output
All aluminum platform, high precision and durable






Strong Body Structure

Effectively ressist vibration when printing quickly,Make sure that each dot of ink falls accurately.

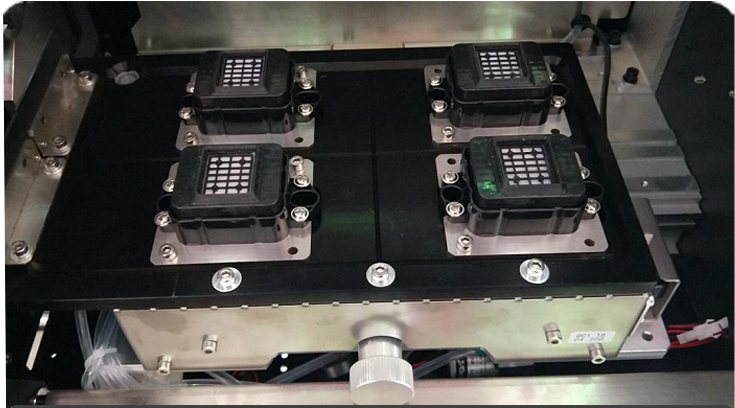

Elevation Type Capping Station

New design capping system, more durable.


Alumunium Girder & Platform

High precision & durable printing.

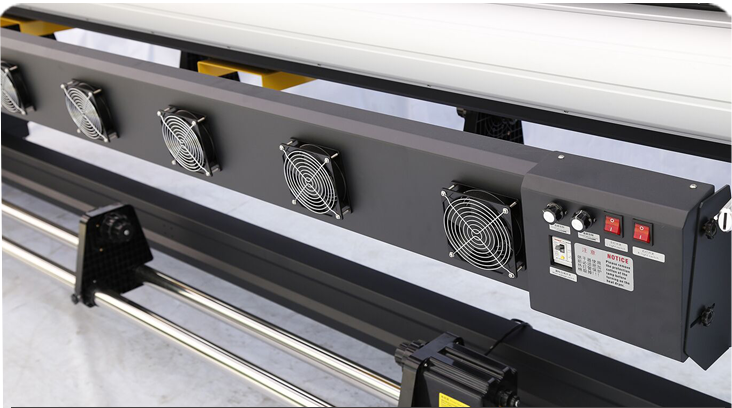

Infrared & Fan Drying System

High efficency drying system,printing continuously.

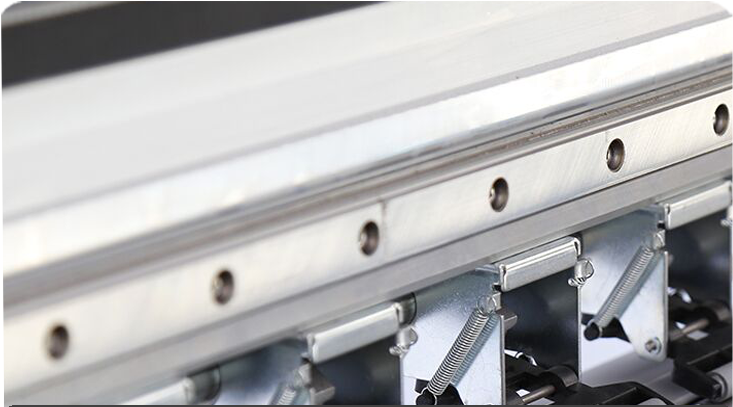

Mute guide rails

high pricison & smooth operation to ensure perfect quality output.

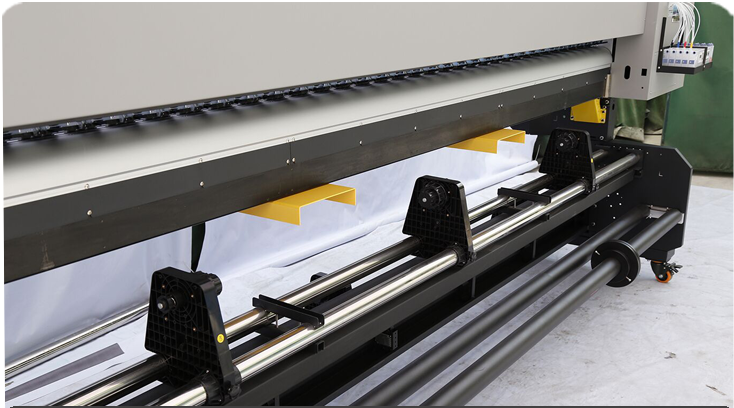

Feeding & Take-up System

Constant tension,ensure accurate & smooth operation.

Direct print on materials range of PP, vinyl, light box cloth, flex, canvas, leather, reflective material etc.



Specifications

Product KINGJET 1080S Series Eco Solvent Printer
Printhead EPSON XP600 Print Head
Model KJ-1802S-2H                                                                                                               KJ-1804S-4H
Media Width 1800mm                                                                                                                      1800mm
Printing Speed 4PASS 38m2                                                                                                               2PASS 62m2
6PASS 28m2                                                                                                               4PASS 30m2
RIP Software Maintop, Photoprint
Printing Ink Eco-solvent ink, Waterbased ink, Sublimation ink
Color 4 colors(K, C, M, Y)
Ink Supply System Auto Cleaning Capping System
Media Type PP, vinyl, light box cloth, flex, canvas, leather, reflective material etc.
Printhead Height 2-8mm Above Media Adjustable
Heating System Infrared & Fan Drying System(1601S fan drying)
Auto Media System Equipped(Max Media Weight 60kg)
Capping & Moisturizing Auto Capping System&Moisturizing System

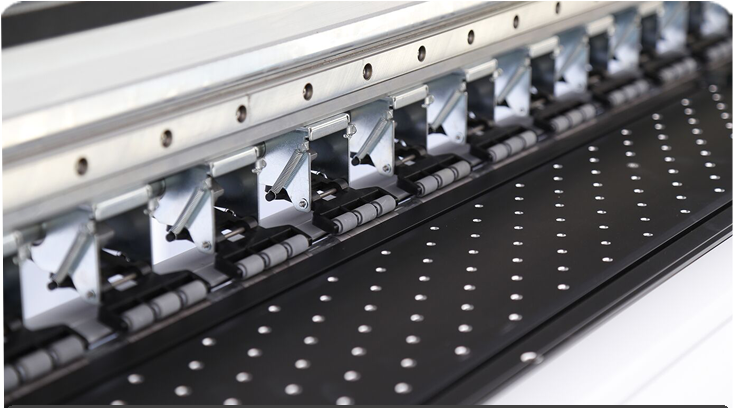

Clamp Combined Anti-warping Clamps
Take Up System 60kg Heavy Type Auto Take-up System
Power Machine Power: 2300W；External heating: 1200W
Working environment Temperature: 20-30℃ Humidity: 50-65%
Machine Dimension (mm) L2980*W880*H1680                                                                                                       L2980*W880*H1680
Package Dimension (mm) L2730*W700*H690                                                                                                         L4590*W1015*H1600
N.W/G.W (KGS) 226KGS/308KGS
