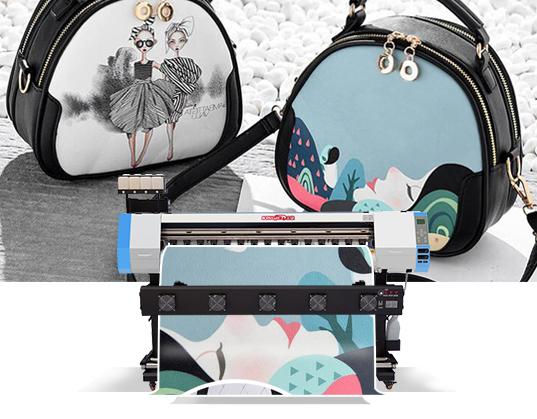

KINGJET KJ-1601S large format 1.6m eco solvent printer flex banner plotter

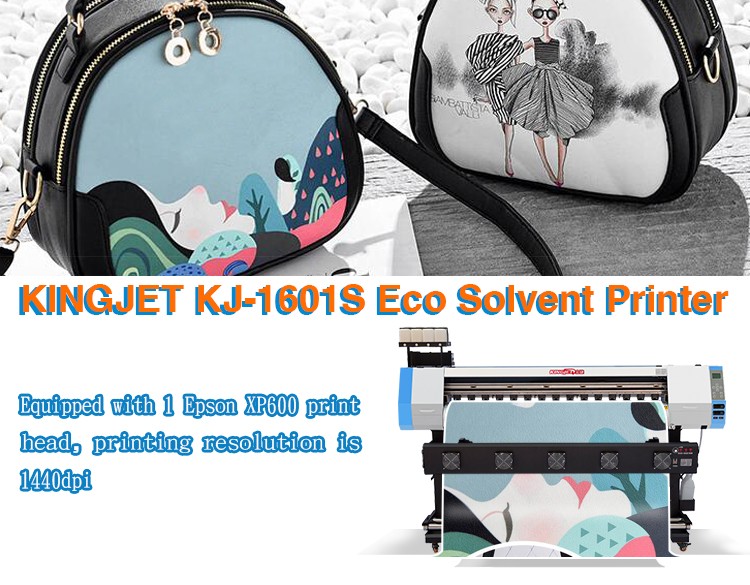

Equipped with 1 Epson XP600 print head，printing resolution is 1440dpi.
Media Type：Car sticker / Lamp cloth / PP / Coated banner / Vinyl etc.

Inquire Now Next Product

KINGJET KJ-1601S Large Format 1.6m Eco Solvent Printer Flex Banner Plotter

With the ability to print 4 colors, the output is much more vivid than ever. Nothing is more convincing than a brilliant picture.Thousands of print service providers have built their business starting from the most economic 4-color model KJ-1601E & KJ-1601S, with the ability to produce everything from banners, vehicle wraps and fine art to print labels, decals, point-of-purchase displays and so much more.

Structure Display

Detail Dislay

Alumunium Girder & Platform

High precision & durable printing.

Elevation Type Capping Station

New design capping system, more durable.

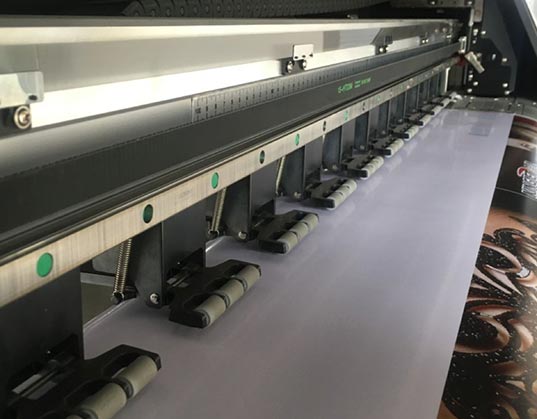

Mute guide rails

high pricison & smooth operation to ensure perfect quality output.

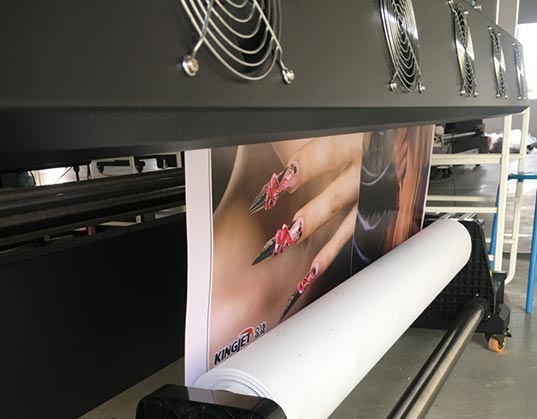

Infrared & Fan Drying System

High efficency drying system,printing continuously.

Feeding & Take-up System

Constant tension,ensure accurate & smooth operation.

Application

Outdoor Flex Banner

Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.

Vehicle Wraps

Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.

Outdoor Posters and Backlit Displays

Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.

Outdoor Mesh

With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.

Specifications

Model	KINGJET 1601E Eco Solvent Printe
Printhead	EPSON DX5 Print Head
Media Width	1600mm
Output Speed	2Pass 240m²/h
Printing Resolution	4PASS 20㎡ 6PASS 15㎡ 8PASS 10㎡
RIP Software	Maintop, Photoprint
Printing Ink	Eco-solvent ink, Waterbased ink, Sublimation ink
Color	4 colors(K, C, M, Y)

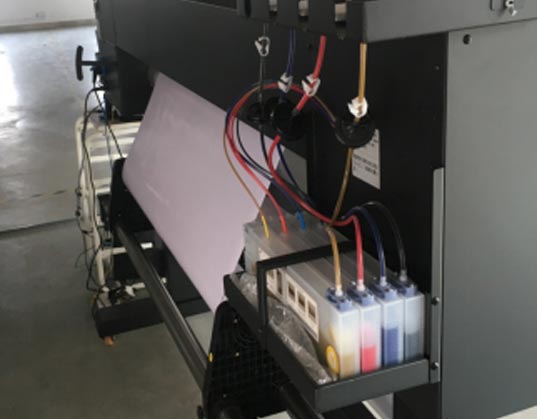

Ink Supply System	Auto Cleaning Capping System
Media Type	PP, vinyl, light box cloth, flex, canvas, leather, reflective material etc.
Printhead Height	2-8mm Above Media Adjustable
Heating System	Intelligent Embedded Heating System

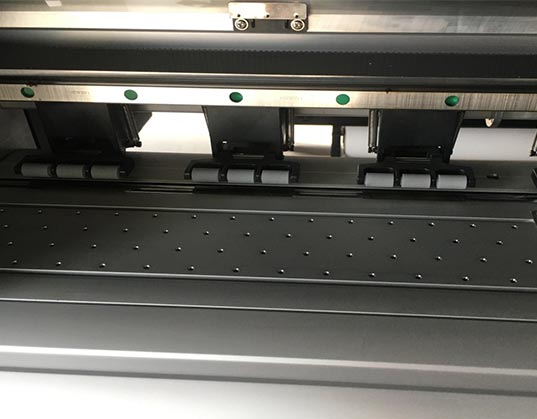

Media Adsorption	Suction Fan Sucking Step Less Adjustment
Auto Media System	Equipped(Max Media Weight 60kg)
Capping&Moisturizing	Auto Capping System&Moisturizing System
Clamp	Combined Anti-warping Clamps
Take Up System	60kg Heavy Type Auto Take-up System
Print Interface	Hi-USB 2.0
Input Power	AC220V,50HZ/60HZ,800W-2500W
Working environment	Temperature: 18-32℃ Humidity: 46%-65%
Machine Dimension	L2362W900H1500mm
Package Dimension	L2440W700H690mm
Net Weight/Gross Weight	152KGS/220KGS

KINGJET KJ-1601S large format 1.6m eco solvent printer
