KINGJET KJ-3208G Plus Solvent Printer Konica 512i Print Head Flex Banner Printer Machine





KINGJET KJ-3208G Plus Solvent Printer Konica 512i Print Head Flex Banner Printer Machine

Equipped with 4/8 KM512i print head,printing speed 240 sqm/h. Media Type:Vinyl/Flex/Polyester/Back-lit Film/Window Film,etc.



Inquire Now Next Product

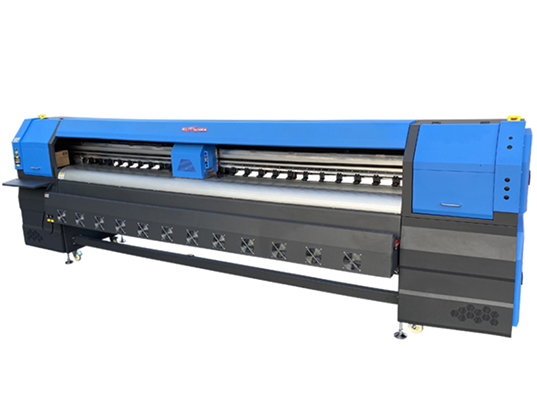

KINGJET KJ-3208G Plus Solvent Printer Konica 512i Print Head Flex Banner Printer Machine

KM-512i is the very ideal choice for high volume outdoor signage applications.The latest Konica printhead has a unbeatable speed than ever,while reproduces photoreal quality with astounding detail and color. KM-512i printhead enable consistent quality across a wide variety of media including vinyl,flex,banner fabric,synthetics,paper,film,canvas etc.All this translates into stunning,vibrant large-format images.Enables clients to experience the full impact of next-generation large-format color printer performance.



Detail Dislay

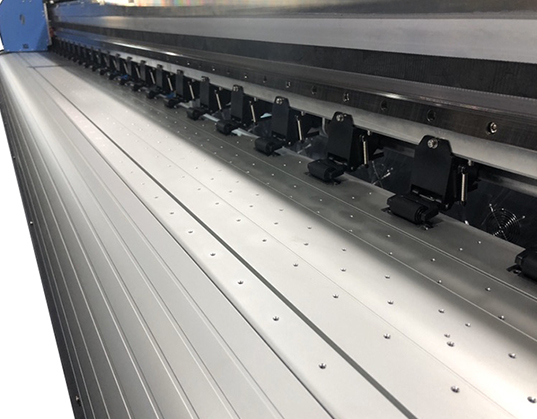

Alumunium Girder & Platform

High precision & durable printing.


Elevation Type Capping Station

New design capping system, more durable.


Mute guide rails

high pricison & smooth operation to ensure perfect quality output.

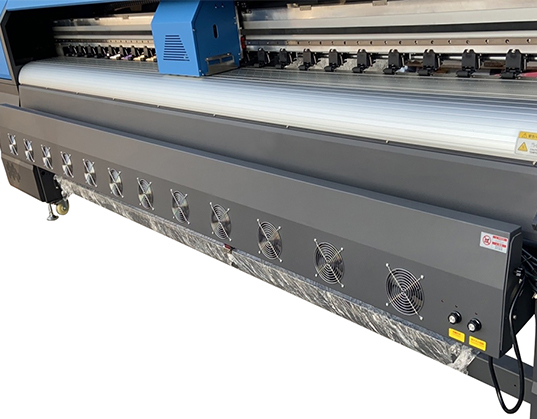

Infrared & Fan Drying System

High efficency drying system,printing continuously.


Feeding & Take-up System

Constant tension,ensure accurate & smooth operation.

Application


Outdoor Flex Banner

Using high-quality, cost-effective Kingjet konica inks, plus the newest konica minolta printhead texhnology to fire droplets precisely and efficiently, KJ-3208G is ideal for banner production. KJ-3208G output banners about 240 sqm/h, without sacrificing print quality.


Vehicle Wraps

Full wraps can be produced with high speed and quality. An integrated heater system and fans helps prints dry quickly so you can move on to lamination and finishing, and deliver superior results in no time – every time.


Outdoor Posters and Backlit Displays

Whether you're cranking out thousands of posters or producing a limited run on specialty material, the KJ-3208G stun images on a range of coated and uncoated media, including papers for posters and film for backlit displays.


Outdoor Mesh

With flying printing speed, KJ-3208G is the king of performance, especially for outdoor large format advertisements. It's easy for printing, no matter how busy business.



Specifications

Model KingJet KJ-3208G Plus Solvent Printerr
Max Print Width 3200mm (10.5ft)
Printing resolution 480DPI (Physical)
Product Model KM512I-30PL-4H                                                                                              KM512I-30PL-8H
Output(sqm/h) Print Mode                                     output speed(sqm/h)                                  Print Mode                         Output Speed(sqm/h)
480X360dpi 2pass                            120                                                         480X360dpi 2pass                         240
480X540dpi 3pass                            90                                                           480X540dpi 3pass                         180
480X720dpi 4pass                            60                                                           480X720dpi 4pass                         120
Auto Media Feeding System Equipped (Max. Media Weight 120kg )
RIP Software PhotoPRINT 10.5 or Maintop V5.30
Media Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Printhead Height 2 to 4 mm Above Media Adjustable
Cleaning System Auto Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Input Power AC 220V,50HZ,4500W
Machine Dimension L4,850 x W1010 x H1,340 mm; Net Weight: 680Kgs (1,499lbs)
Package Dimension L5230 x W1040 x H1480mm; Gross Weight: 900Kgs (1,984lbs); Two units in one 20 feet container
