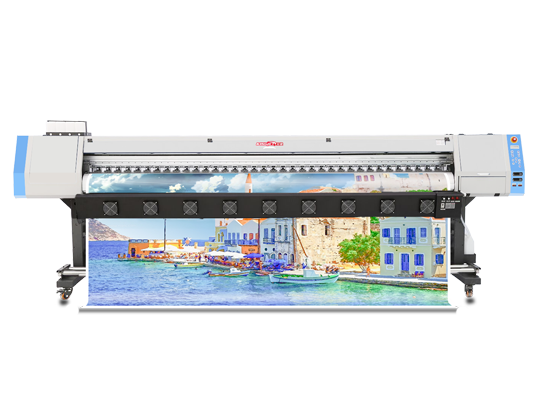

Equipped with 2 pieces DX5 print head or 4 piece XP600 print head obtional, whose printing resolution is 1440dpi, KJ-320E is high production, the max printing speed is 70 sqm/h (2 pass).
Equipped with 2 pieces DX5 print head or 4 piece XP600 print head obtional, whose printing resolution is 1440dpi, KJ-320E is high production, the max printing speed is 70 sqm/h (2 pass).
New type printhead, cave much cost for your business
New Design Capping system, more reliable & durable
Constant tension feeding and take-up system to ensure accurate and smooth operation
All aluminum platform with mute guide rails, high precison and smooth operation
| Product | KINGJET ECO SOLVENT PRINTER |
|---|---|
| Printhead | EPSON XP600 Print Head |
| Model | KJ-3204S-4H |
| Printing Speed/Mode | 2PASS 70m2 4PASS 35m2 |
| Media Width | Eco-solvent ink, Waterbased ink, Sublimation ink |
| Color | 4 colors(K, C, M, Y) |
| Ink Supply System | Auto Cleaning Capping System |
| Media Type | PP, vinyl, light box cloth, flex, canvas, leather, reflective material etc. |
| Printhead Height | 2-8mm Above Media Adjustable |
| Heating System | Infrared & Fan Drying System(1601S fan drying) |
| Auto Media System | Equipped(Max Media Weight 60kg) |
| Capping & Moisturizing | Auto Capping System&Moisturizing System |
| Clamp | Combined Anti-warping Clamps |
| Take Up System | 60kg Heavy Type Auto Take-up System |
| RIP Software | Maintop, Photoprint |
| Power | Machine Power: 230W;External heating: 1200W |
| Working environment | Temperature: 20-30℃ Humidity: 50-65% |
| Machine Dimension (mm) | L4550*W1000*H1600 |
| Package Dimension (mm) | L4590*W1015*H1600 |
| N.W/G.W (KGS) | 540KGS/760KGS |
