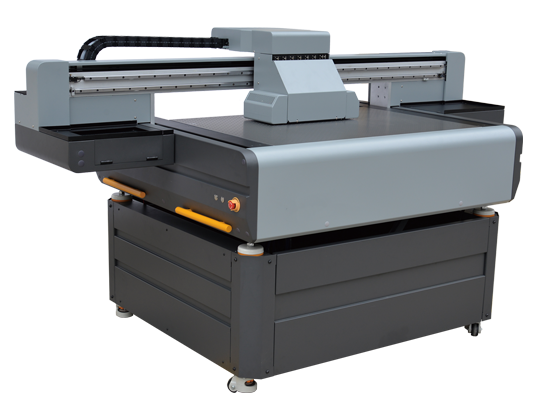

500mm Printing Height UV Flatbed Printer
2019 new masterpiece _ industrial grade Toshiba small UV flatbed printer The printing size is 900mm*600mm, the printing height is 1mm~500mm. The printing accuracy is up to 1800dpi, the fastest printing speed is 18 sqm/h. Split design, covering 1㎡, easy to place. Can be used in art painting, wood, glass, crystal, metal plate, floor tile, porcelain, CD, acrylic, plexiglass, EVA.KT board, leather, silicone, plastic, PP, PE, PVC, stickers, stone, etc. The surface is printed in color photo. At the same time, the equipment is newly upgraded, and it is equipped with a full vacuum adsorption platform and a cold light source UV lamp, so that you can use it with more confidence.
Inquire Now
Uniquer Technology
Control Panel
Simple And Convenient,with Led Screen.
Easily Switch to different Interfaces.
Easily Turn or Off.
Small Cariage Form
Full Alumunium carriage frame ensure accurate Printing.
Automatic Adjust carriage height for different materials.
Proffesional positive UV damper ensure stable ink supply.
Anti-collision sensor.
Cylinder Clampe
Printing Options, Adjustable Spacing.
Can Printing Bottle,mug,Glass Bottlesand Other Cylindrical Objects.
Ink Bottle
First grade ink bottle.
0 Colors: CMYKLcLM+White+Vanish.
Low ink Volume alarm function equipped.
Leadshine motor
Integrated design, smaller size, lower noise and heating.
Strong anti-interference capability, smoother operation.
Intelligent ink scraping design
Automatically printhead cleaning and moisturizing.
Push-pull capping system design, can quickly reset to original position.
Honosoft carriage board
Mature and stable control system.
Carriage Board with fan cooler.
ensure long time & stable working.
Can be used in art painting, wood, glass, crystal, metal plate, floor tile, porcelain, CD, acrylic, plexiglass, EVA.KT board, leather, silicone, plastic, PP, PE, PVC, stickers, stone, etc. The surface is printed in color photo.
Specifications
| Product Parameters | |
|---|---|
| Model | KJ-UV9060 UV Flatbed Printer |
| Printhead | TOSHIBA CE4-M |
| Printhead Number | 4-8 pieces |
| RIP Software | Photoprint, Maintop |
| Color Configuration | CMYK, CMYK+W, CMYK+LcLm |
| Printing Resolution | 600*900DPI, 600*1200DPI, 600*1800DPI |
| Printing Speed | High speed mode: 25m²/h Production mode: 20m²/h High resolution mode: 16m²/h |
| Media Type | Customized gifts, Handicraft works, Mobile phone case, Glass,Metal, Acrylic, PVC, etc. |
| Size of Material | Maximum Print Area：Panel: (700mm x 1050mm) |
| Size of Printing | Maximum Print Area：Panel: (600mm x 900mm) |
| Heating System | LED UV water-cooling curing system |
| Thickness of Material | Panel：≤ 500mm |
| Weight of Material | Panel：≤ 45 kg/m2 |
| Image format | Tiff,JPG,Postscript3,EPS,PDF,AI etc. |
| Ink | Environmental protective UV ink |
| Power Supply | AC 50hz/60hz , 220V(±10%)＞8A ; 1.7kw (exclusive fan) |
| Operation environment | Temperature 15-30℃(59-86℉) Humidity 40-80% RH (non-condensing) |
| Input Power | Operating Noise ≤80dB |
| Net & Gross Weight | 200kg/250kg |
| Package Dimension | L1060×W1960×H1150mm |
